The recommended operating voltage range for the 74AC11074PWR is 2.0V to 3.6V, as specified in the datasheet. However, it's recommended to operate the device within the 2.5V to 3.3V range for optimal performance and to ensure compatibility with most digital systems.
It's recommended to power up the VCC pin before applying any input signals, and to power down the VCC pin after removing all input signals. This ensures that the device is properly initialized and avoids any potential latch-up or damage during power-up and power-down sequences.
The maximum frequency of operation for the 74AC11074PWR is typically around 100 MHz, but it can vary depending on the specific application, operating voltage, and output loading. It's recommended to consult the datasheet and perform simulations or testing to determine the maximum frequency of operation for a specific design.
To ensure signal integrity and minimize noise, it's recommended to use proper PCB design techniques, such as using short signal traces, minimizing impedance mismatches, and adding decoupling capacitors near the device. Additionally, using a low-ESR capacitor on the VCC pin can help to reduce noise and improve signal integrity.
While the 74AC11074PWR is specified to operate up to 3.6V, it's not recommended to use it in a 5V system. Operating the device above its recommended voltage range can lead to reduced performance, increased power consumption, and potentially even damage the device. If a 5V system is required, consider using a voltage regulator or level translator to ensure compatibility.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
74AC11074PWR Overview

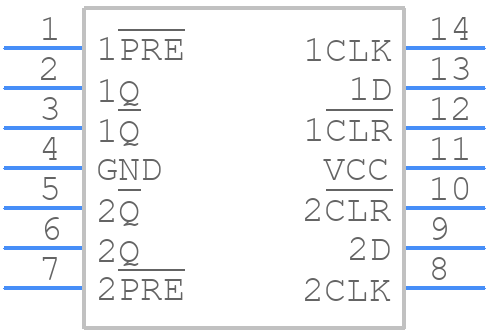

Use the download button to access the 74AC11074PWR schematic symbol, PCB footprint, and 3D model.
