The recommended operating voltage range for the 74ACT11373DW is 4.5V to 5.5V, as specified in the datasheet. However, it's recommended to operate the device at a fixed voltage of 5V for optimal performance.
It's recommended to power up the VCC pin before the input signals, and power down the VCC pin after the input signals. This ensures that the device is properly initialized and avoids any potential latch-up or damage.
The maximum frequency of operation for the 74ACT11373DW is 100 MHz, as specified in the datasheet. However, the actual frequency of operation may be limited by the system design, layout, and loading conditions.
To ensure signal integrity and minimize noise, it's recommended to use proper PCB design techniques, such as using short signal traces, minimizing impedance mismatch, and adding decoupling capacitors near the device. Additionally, consider using series termination resistors and/or parallel termination capacitors to reduce signal reflections and ringing.
While the 74ACT11373DW is specified for 5V operation, it can be used in a 3.3V system with some limitations. The device will still function, but its performance may be degraded, and the output voltage levels may not meet the required specifications. It's recommended to consult the datasheet and perform thorough testing to ensure the device meets the system requirements.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
74ACT11373DW Overview

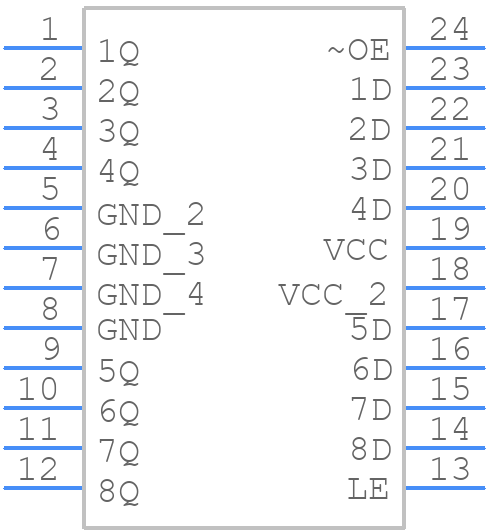

Use the download button to access the 74ACT11373DW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 74ACT,
or try a keyword search, such as Bus Driver/Transceivers
