The recommended operating voltage range for the 74ACT11373DWR is 4.5V to 5.5V, as specified in the datasheet. However, it's recommended to operate the device at a fixed voltage of 5V for optimal performance.
It's recommended to power up the VCC pin before the input signals, and power down the VCC pin after the input signals. This ensures that the device is properly initialized and avoids any potential latch-up or damage.
The maximum frequency of operation for the 74ACT11373DWR is 100 MHz, as specified in the datasheet. However, the actual frequency of operation may be limited by the system design, layout, and loading conditions.
To ensure signal integrity and minimize noise, it's recommended to use proper PCB design techniques, such as using short signal traces, minimizing impedance mismatch, and adding decoupling capacitors. Additionally, using a low-noise power supply and minimizing electromagnetic interference (EMI) can also help.
While the 74ACT11373DWR is specified for 5V operation, it can be used in a 3.3V system with some limitations. The device will still function, but the output voltage levels may not be as high, and the noise margin may be reduced. It's recommended to consult the datasheet and perform thorough testing to ensure compatibility.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
74ACT11373DWR Overview

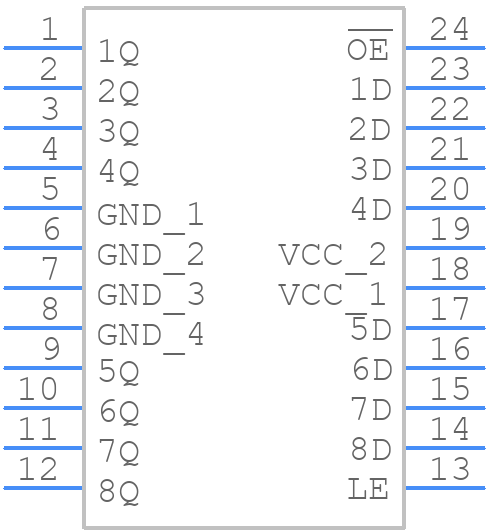

Use the download button to access the 74ACT11373DWR schematic symbol, PCB footprint, and 3D model.
