8-338069-6 - TE Connectivity

Description: Body Features: Connector Profile Standard | Primary Product Color Red | Daisy Chain Without | Configuration Features: Number of Rows 2 | Number of Positions 16 | PCB Mount Orientation Vertical | Contact Features: PCB Contact Termination Area Plating Material Finish Matte | Contact Current Rating (Max) 1.5 AMP | PCB Contact Termination Area Plating Material Thickness 3 – 5 MICM | PCB Contact Termination Area Plating Material Tin | Contact Mating Area Plating Material Thickness 118.11 – 196.85 MICIN | PCB

Download 8-338069-6 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
8-338069-6 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

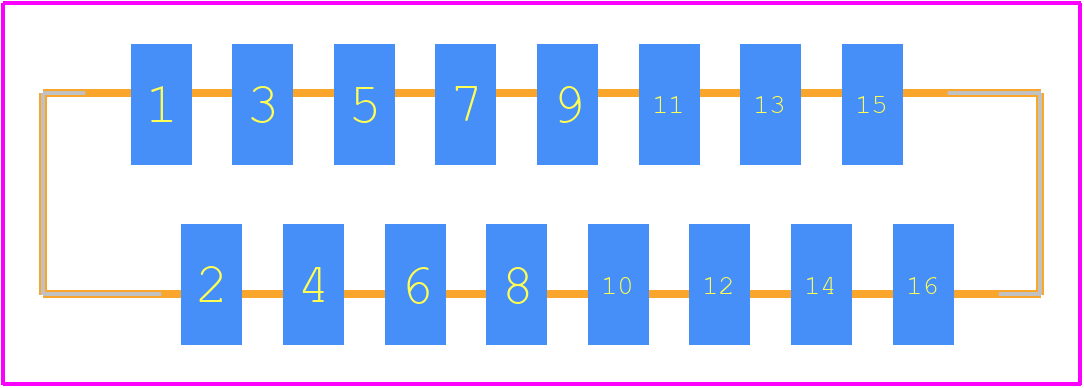

8-338069-6 - TE Connectivity PCB footprint - Other - Other - 8-338069-6-1
click to zoom
3D Models
8-338069-6 - TE Connectivity - 3D model - Other - 8-338069-6-1
click to zoom

8-338069-6 Details

  • Manufacturer Part Number:

    8-338069-6

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    29 Weeks, 6 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    9

  • Additional Feature:

    STAGGERED CONFIGURATION

  • Body Breadth:

    0.205 inch

  • Body Depth:

    0.27 inch

  • Body Length:

    0.98 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    BELLOWED TYPE

  • DIN Conformance:

    NO

  • Durability:

    20 Cycles

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insertion Force-Max:

    4.8928 N

  • Insulation Resistance:

    1000000000 Ω

  • Insulator Color:

    RED

  • Insulator Material:

    POLYAMIDE46

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    1.5A

  • Mating Contact Pitch:

    0.05 inch

  • Mating Contact Row Spacing:

    0.059 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Option 2:

    FRICTION LOCK

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    STAGGERED

  • PCB Contact Row Spacing:

    4.4958 mm

  • Panel Mount:

    NO

  • Plating Thickness:

    196.85u inch

  • Polarization Key:

    POLARIZED

  • Rated Current (Signal):

    1.5 A

  • Rated Voltage:

    100 V

  • Reference Standard:

    UL

  • Terminal Length:

    0.208 inch

  • Terminal Pitch:

    1.27 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    16

  • UL Flammability Code:

    94V-0

  • Withdrawl Force-Min:

    1.0008 N

8-338069-6 Frequently Asked Questions (FAQs)

  • The recommended torque value for the 8-338069-6 connector is 0.5-1.5 Nm (4.4-13.3 in-lbs). However, it's essential to consult the TE Connectivity application notes or contact their technical support for specific torque recommendations tailored to your application.
  • While the 8-338069-6 connector is designed to be robust, it's crucial to assess the specific vibration requirements of your application. TE Connectivity recommends consulting their vibration testing data and performing additional testing to ensure the connector meets your application's vibration requirements.
  • The 8-338069-6 connector is designed to operate in a temperature range of -40°C to 125°C. However, for high-temperature or high-humidity applications, it's recommended to consult TE Connectivity's environmental testing data and consider using additional protective measures, such as conformal coatings or sealing, to ensure the connector's reliability.
  • The 8-338069-6 connector is designed for a minimum of 500 mating cycles. However, the actual mating cycle life may vary depending on factors such as connector handling, cleaning, and maintenance. It's recommended to consult TE Connectivity's application notes for guidance on maximizing the connector's mating cycle life.
  • Yes, TE Connectivity recommends following their cleaning and maintenance guidelines to ensure the connector's reliability. This includes using approved cleaning solvents, avoiding abrasive materials, and performing regular inspections to prevent contamination and damage.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

8-338069-6 Overview

Use the download button to access the 8-338069-6 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 8-338, or try a keyword search, such as Headers and Edge Type Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
