828-AG11D-ESL-LF - TE Connectivity

Description: OPEN FRAME DIP. ECONOMY (STAMPED CONTACT) (REF AUGAT 800 SERIES)

Download 828-AG11D-ESL-LF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
828-AG11D-ESL-LF - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

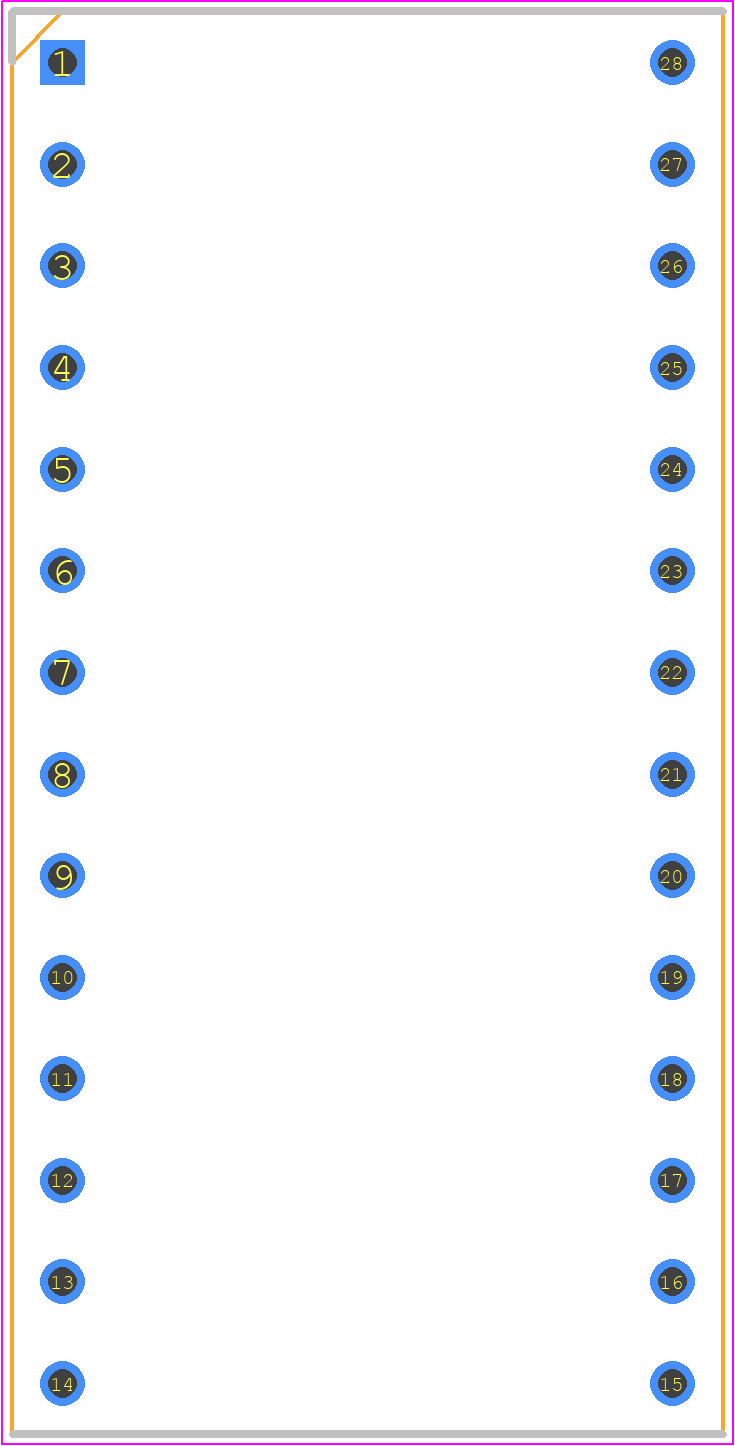

828-AG11D-ESL-LF - TE Connectivity PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - 2-1571552-9*
click to zoom
3D Models
828-AG11D-ESL-LF - TE Connectivity - 3D model - Dual-In-Line Sockets - 2-1571552-9*
click to zoom

828-AG11D-ESL-LF Details

  • Manufacturer Part Number:

    828-AG11D-ESL-LF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    13 Weeks, 2 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    0

  • Additional Feature:

    STANDARD: UL 94V-0

  • Body Breadth:

    0.7 inch

  • Body Depth:

    0.105 inch

  • Body Length:

    1.4 inch

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Material:

    NOT SPECIFIED

  • Contact Style:

    RND PIN-SKT

  • Current Rating:

    3 A

  • Device Socket Type:

    IC SOCKET

  • Device Type Used On:

    DIP28

  • Dielectric Withstanding Voltage:

    1400VAC V

  • Housing Material:

    POLYETHYLENE POLYESTER

  • Insulation Resistance:

    5000000000 Ω

  • Mating Contact Pitch:

    0.1 inch

  • Mounting Style:

    STRAIGHT

  • Number of Contacts:

    28

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    0.6000000000000001 mm

  • Packing Method:

    BOX; TUBE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

828-AG11D-ESL-LF Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw locks on the 828-AG11D-ESL-LF connector.
  • Yes, the 828-AG11D-ESL-LF connector is designed to withstand high-vibration environments and is suitable for applications with vibration levels up to 10G.
  • Yes, the 828-AG11D-ESL-LF connector is designed to operate in harsh environments and has a salt spray resistance of 720 hours according to IEC 60068-2-52.
  • The 828-AG11D-ESL-LF connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F).
  • Yes, the 828-AG11D-ESL-LF connector is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
