82V3010PVG8 - Renesas Electronics

82V3010PVG8 Details

• Manufacturer Part Number:

  82V3010PVG8

• Brand Name:

  Renesas

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

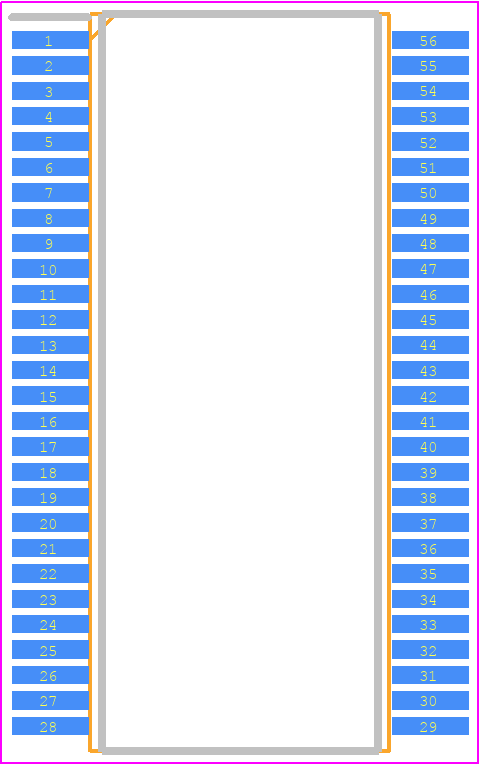

• Part Package Code:

  SSOP

• Package Description:

  GREEN, SSOP-56

• Pin Count:

  56

• Manufacturer Package Code:

  PVG56

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  0

• JESD-30 Code:

  R-PDSO-G56

• JESD-609 Code:

  e3

• Length:

  18.415 mm

• Moisture Sensitivity Level:

  3

• Number of Functions:

  1

• Number of Terminals:

  56

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SSOP

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  2.794 mm

• Supply Voltage-Nom:

  3.3 V

• Surface Mount:

  YES

• Telecom IC Type:

  TELECOM CIRCUIT

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.635 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  7.493 mm
