Description:The 82V3285 is an integrated, single-chip solution for the Synchronous Equipment Timing Source for Stratum 2, 3E, 3, SMC, 4E and 4 clocks in SONET / SDH equipments, DWDM and Wireless base station, such as GSM, 3G, DSL concentrator, Router and Access Network applications. The device supports three types of input clock sources: recovered clock from STM-N or OC-n, PDH network synchronization timing and external synchronization reference timing. Based on ITU-T G.783 and Telcordia GR-253-CORE, the device consist
Renesas provides a recommended PCB layout guide in their application note (R01AN2732EU0100) which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
A reliable POR circuit can be implemented using an external voltage supervisor IC (such as the Renesas RP108 series) or a discrete circuit with a voltage detector, resistor, and capacitor. The POR circuit should be designed to ensure a clean power-up sequence and prevent brown-out conditions.
The 82V3285EQG has a thermal pad that must be connected to a thermal ground plane on the PCB to dissipate heat. A thermal interface material (TIM) can be used to improve heat transfer. Additionally, the PCB design should ensure good airflow and avoid thermal obstacles around the device.
To troubleshoot clock circuitry issues, verify the clock input signal quality, ensure proper termination, and check for noise or jitter on the clock lines. Use an oscilloscope to measure the clock signal and verify it meets the datasheet specifications. Also, check the clock configuration registers to ensure they are properly set.
To ensure EMC compliance, follow Renesas' guidelines for PCB layout, component selection, and shielding. Use a multi-layer PCB with a solid ground plane, and consider using a shielded enclosure or metal can for the device. Additionally, ensure proper filtering and decoupling of power and signal lines.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
82V3285EQG Overview

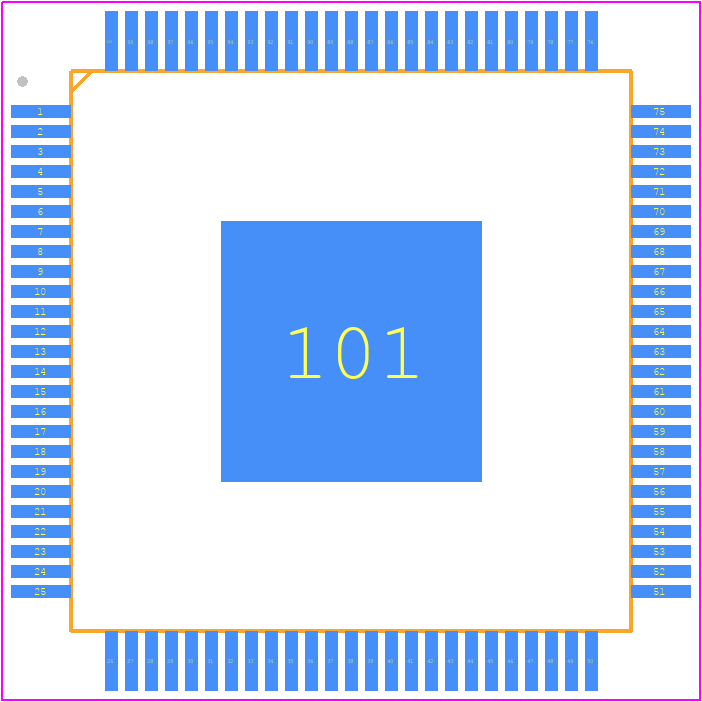

Use the download button to access the 82V3285EQG schematic symbol, PCB footprint, and 3D model.
