Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as using a solid ground plane, minimizing trace lengths, and avoiding vias under the device. Additionally, ensure that the input and output traces are well-separated to reduce noise and crosstalk.
The 8406401EA has a maximum junction temperature of 150°C. To ensure reliable operation, it's crucial to provide adequate thermal management. Use a heat sink or thermal pad, and ensure good airflow around the device. You can also consider using thermal interface materials to improve heat transfer.
Operating the 8406401EA beyond the recommended operating conditions can lead to reduced reliability, decreased performance, and potentially even device failure. Ensure that you operate the device within the specified voltage, current, and temperature ranges to guarantee optimal performance and longevity.
To troubleshoot issues with the 8406401EA, start by verifying that the input voltage, output load, and operating conditions are within the specified ranges. Check for proper PCB layout, decoupling, and thermal management. Use oscilloscopes or other diagnostic tools to identify the root cause of the issue. Consult the datasheet and application notes for guidance on troubleshooting and debugging.
Yes, the 8406401EA is a high-frequency device, and proper EMI/EMC design practices are essential to ensure compliance with regulatory requirements and prevent electromagnetic interference. Use shielding, filtering, and grounding techniques to minimize emissions and susceptibility. Consult the datasheet and relevant application notes for guidance on EMI/EMC design.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
8406401EA Overview

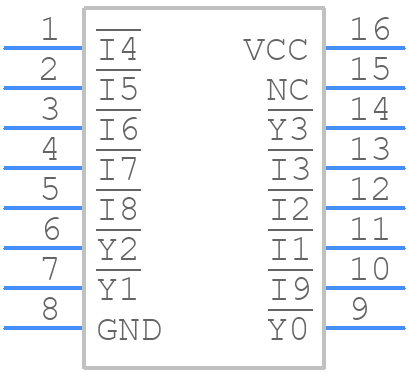

Use the download button to access the 8406401EA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 84064,
or try a keyword search, such as Arithmetic Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
