8533AG-01LF - Renesas Electronics

Description: The 8533-01 is a low skew, high performance 1-to-4 Differential-to-3.3V LVPECL Fanout Buffer. The 8533- 01 has two selectable clock inputs. The CLK, nCLK pair can accept most standard differential input levels. The PCLK, nPCLK pair can accept LVPECL, CML, or SSTL input levels. The clock enable is internally synchronized to eliminate runt pulses on the outputs during asynchronous assertion/deassertion of the clock enable pin. Guaranteed output and part-to-part skew characteristics make the 8533-01 ideal for

Download 8533AG-01LF Model

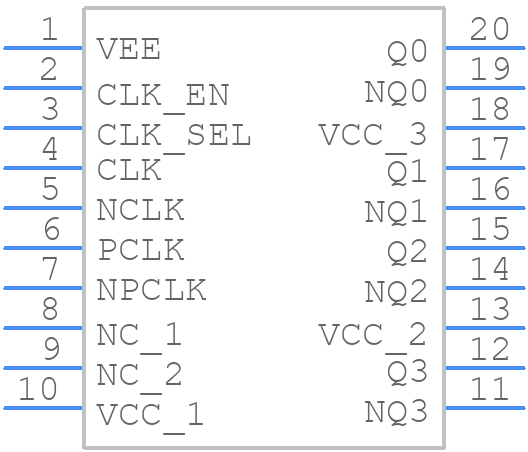

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
8533AG-01LF - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - G Suffix for 20 Lead TSSOP
click to zoom
3D Models
8533AG-01LF - Renesas Electronics  - 3D model - Small Outline Packages - G Suffix for 20 Lead TSSOP
click to zoom

8533AG-01LF Details

  • Manufacturer Part Number:

    8533AG-01LF

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    PGG20

  • Country Of Origin:

    Taiwan

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    6

  • Family:

    8533

  • Input Conditioning:

    DIFFERENTIAL

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Number of True Outputs:

    4

  • Operating Temperature-Max:

    70 °C

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    50 mA

  • Prop. Delay@Nom-Sup:

    1.4 ns

  • Propagation Delay (tpd):

    1.4 ns

  • Qualification Status:

    Not Qualified

  • Same Edge Skew-Max (tskwd):

    0.03 ns

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    3.465 V

  • Supply Voltage-Min (Vsup):

    3.135 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

  • fmax-Min:

    650 MHz

8533AG-01LF Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application notes (e.g., AN1841) and evaluation board documentation. It's essential to follow these guidelines to ensure proper thermal management, noise reduction, and signal integrity.
  • Renesas recommends a specific power sequencing scheme to ensure proper startup and operation of the device. This information can be found in the datasheet, application notes, or by contacting Renesas support directly.
  • The 8533AG-01LF has a high power dissipation, so proper thermal management is crucial. Renesas recommends using a heat sink, thermal interface material, and ensuring good airflow around the device. The thermal resistance (θJA) and junction temperature (TJ) ratings should be considered during design.
  • The 8533AG-01LF is a commercial-grade device, but Renesas offers other variants (e.g., 8533AG-01LF-A) that are specifically designed for automotive and high-reliability applications. These variants have additional features, such as enhanced temperature ranges and qualification to specific industry standards (e.g., AEC-Q100).
  • Renesas provides troubleshooting guides and FAQs on their website, as well as dedicated support channels for customers. It's essential to follow a systematic approach to debugging, including reviewing the datasheet, application notes, and schematics, as well as using debugging tools and techniques.
