The recommended land pattern for the 88-00153-02 can be found in the Murata datasheet or in the IPC-7351 standard. It's essential to follow the recommended land pattern to ensure reliable soldering and prevent defects.
Handle the component by the edges or the recommended handling areas to prevent damage to the internal components. Avoid touching the component's electrical contacts or the ceramic body to prevent electrostatic discharge (ESD) damage.
The maximum reflow temperature for the 88-00153-02 is 260°C (500°F) for a maximum of 20 seconds. Exceeding this temperature or time may cause damage to the component.
The 88-00153-02 is designed to withstand moderate vibration levels. However, it's essential to evaluate the component's performance in your specific application and consider additional mechanical support or mounting methods if the vibration levels are extreme.
Store the components in their original packaging or in a dry, sealed container with a desiccant packet to maintain a relative humidity below 20%. Avoid exposing the components to direct sunlight, moisture, or extreme temperatures.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
88-00153-02 Overview

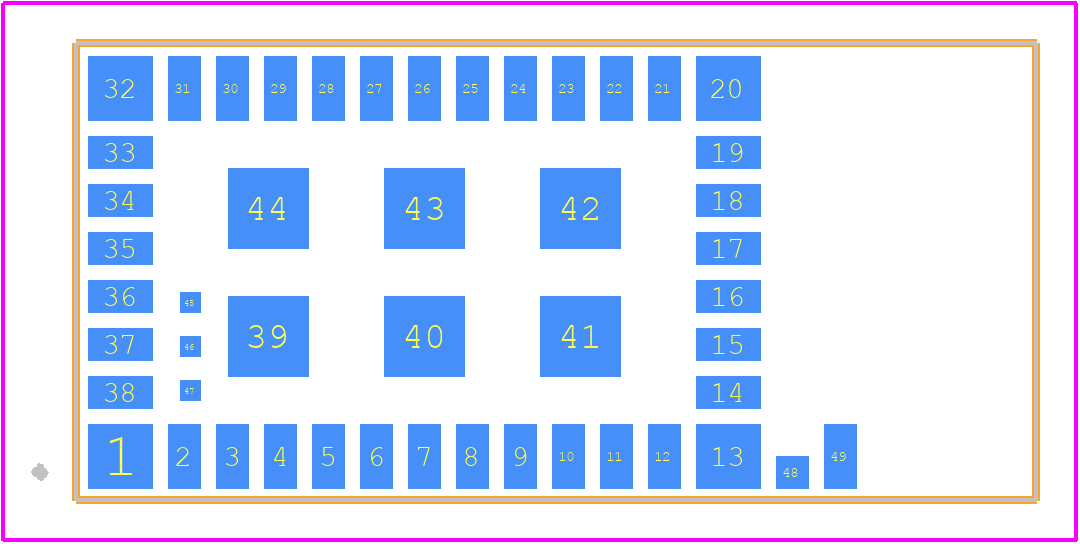

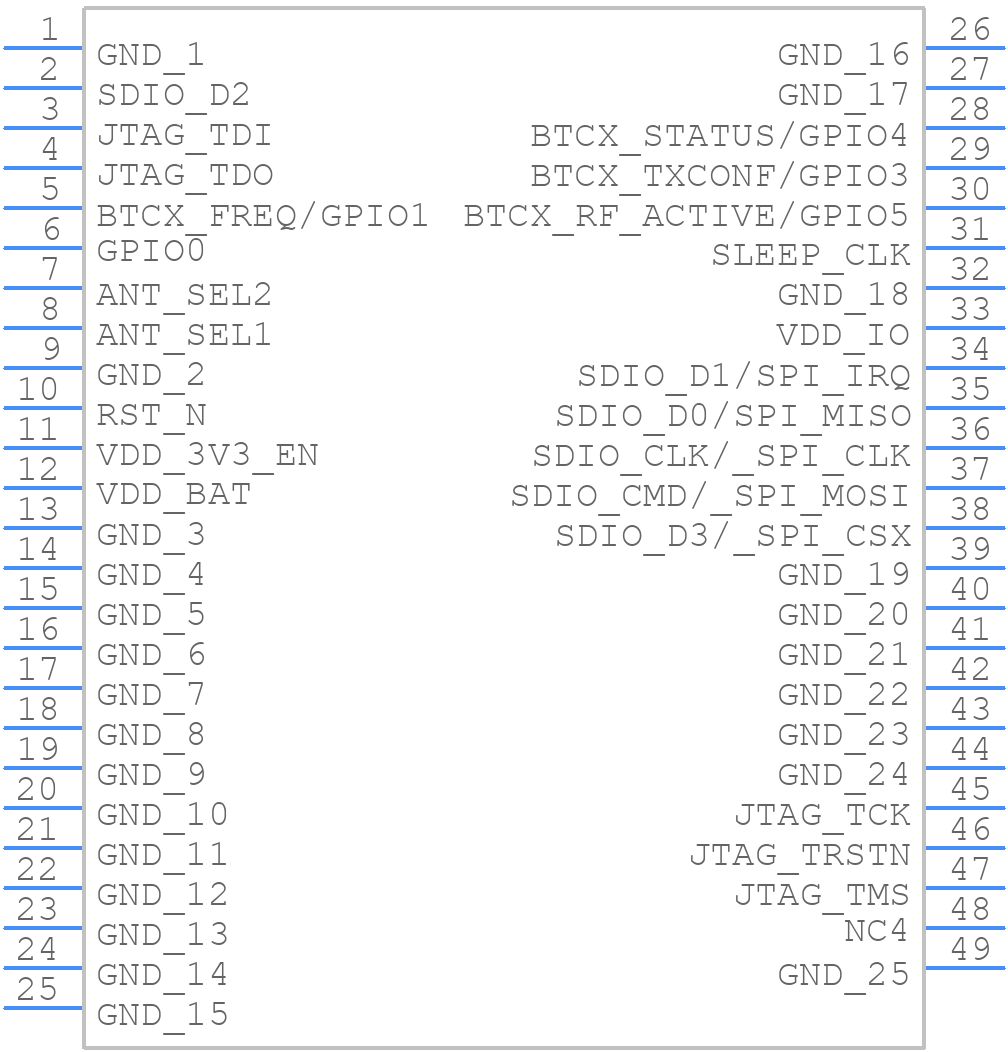

Use the download button to access the 88-00153-02 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 88-00,
or try a keyword search, such as Other Telecom ICs
About Murata Electronics
Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions.
Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
