8WE-24.000MDM-T - TXC CORPORATION

Description: Standard Clock Oscillators 2.5x2.0 Low EMI CMOS Quartz Oscillator / Ceramic, 1.8V, +/-50ppm (-40 to 125C)

Download 8WE-24.000MDM-T Model

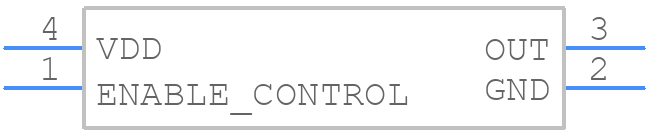

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
8WE-24.000MDM-T - TXC CORPORATION PCB footprint - Other - Other - 2.5 x 2.0 x 0.8mm
click to zoom
3D Models
8WE-24.000MDM-T - TXC CORPORATION  - 3D model - Other - 2.5 x 2.0 x 0.8mm
click to zoom

8WE-24.000MDM-T Details

  • Manufacturer Part Number:

    8WE-24.000MDM-T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SMD, 4 PIN

  • Country Of Origin:

    Taiwan

  • Manufacturer:

    TXC Corporation

  • YTEOL:

    6

  • Additional Feature:

    ENABLE/DISABLE FUNCTION; TR, 7 INCH

  • Fall Time-Max:

    8 ns

  • Frequency Adjustment-Mechanical:

    NO

  • Frequency Stability:

    50%

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    4

  • Operating Frequency-Nom:

    24 MHz

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    CMOS

  • Output Load:

    15 pF

  • Package Body Material:

    CERAMIC

  • Physical Dimension:

    2.5mm x 2.0mm x 0.8mm

  • Rise Time-Max:

    8 ns

  • Supply Voltage-Max:

    1.89 V

  • Supply Voltage-Min:

    1.71 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Symmetry-Max:

    55/45 %

8WE-24.000MDM-T Frequently Asked Questions (FAQs)

  • The recommended termination resistance for the 8WE-24.000MDM-T is 1 kΩ to ensure proper signal integrity and minimize reflections.
  • While the 8WE-24.000MDM-T is rated for industrial temperature range (-40°C to 85°C), it's essential to consider the specific application's temperature requirements and potential derating. Consult with TXC Corporation or a qualified engineer for customized guidance.
  • To decouple the output signal, use a 10 nF to 100 nF capacitor between the output pin and GND, and consider adding a series resistor (e.g., 10 Ω to 100 Ω) to prevent overloading and ensure signal integrity.
  • The 8WE-24.000MDM-T typically takes around 2-5 ms to stabilize after power-up, depending on the specific application and circuit conditions. Ensure your design accounts for this startup time to avoid potential issues.
  • Yes, but be cautious when using the 8WE-24.000MDM-T in a design with multiple power domains. Ensure proper power sequencing, and consider using level shifters or buffers to prevent voltage conflicts and signal degradation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

8WE-24.000MDM-T Overview

Use the download button to access the 8WE-24.000MDM-T schematic symbol, PCB footprint, and 3D model.
