940C10P22K-F - Cornell Dubilier

Description: Cornell-Dubilier 940C 220nF Polypropylene Film Capacitor 500 V ac, 1000 V dc ±10% 17.5mm

Download 940C10P22K-F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
940C10P22K-F - Cornell Dubilier - PCB symbol
click to zoom
PCB Footprints

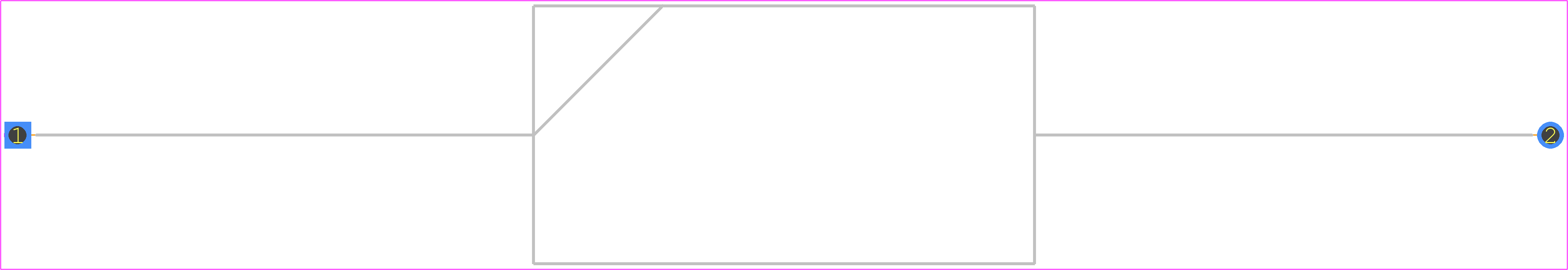

940C10P22K-F - Cornell Dubilier PCB footprint - Capacitors, Polarized Axial Diameter Horizontal Mounting - Capacitors, Polarized Axial Diameter Horizontal Mounting - 940C
click to zoom
3D Models
940C10P22K-F - Cornell Dubilier - 3D model - Capacitors, Polarized Axial Diameter Horizontal Mounting - 940C
click to zoom

940C10P22K-F Details

  • Manufacturer Part Number:

    940C10P22K-F

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    AXIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.25.00.60

  • Manufacturer:

    Knowles CDE

  • YTEOL:

    6.93

  • Capacitance:

    0.22 µF

  • Capacitor Type:

    FILM CAPACITOR

  • Diameter:

    17.5 mm

  • Dielectric Material:

    POLYPROPYLENE

  • ESR:

    7 mΩ

  • JESD-609 Code:

    e3

  • Length:

    34 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    10%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    TUBULAR PACKAGE

  • Package Style:

    Axial

  • Positive Tolerance:

    10%

  • Rated (AC) Voltage (URac):

    500 V

  • Rated (DC) Voltage (URdc):

    1000 V

  • Ripple Current:

    7400 mA

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin (Sn)

  • Terminal Shape:

    WIRE

940C10P22K-F Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for the 940C10P22K-F is between 250°C to 260°C for a maximum of 5 seconds.
  • Yes, the 940C10P22K-F capacitor is RoHS compliant, meaning it meets the European Union's Restriction of Hazardous Substances directive.
  • The maximum voltage derating for the 940C10P22K-F is 50% of the rated voltage, meaning it can operate safely at up to 50% of its rated voltage.
  • Yes, the 940C10P22K-F is suitable for high-frequency applications due to its low equivalent series resistance (ESR) and high resonance frequency.
  • Yes, the 940C10P22K-F capacitor meets the requirements for use in automotive applications, including high temperatures and vibration resistance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

940C10P22K-F Overview

Use the download button to access the 940C10P22K-F schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 940C1, or try a keyword search, such as Film Capacitors
