Part Image

9DB233AGILF - Renesas Electronics

Description: The 9DB233 zero-delay buffer supports PCIe Gen3 requirements, while being backwards compatible to PCIe Gen2 and Gen1. The 9DB233 is driven by a differential SRC output pair from an IDT 932S421 or 932SQ420 or equivalent main clock generator. It attenuates jitter on the input clock and has a selectable PLL bandwidth to maximize performance in systems with or without Spread-Spectrum clocking. An SMBus interface allows control of the PLL bandwidth and bypass options, while 2 clock request (OE#) pins make the 9D

Download 9DB233AGILF Model

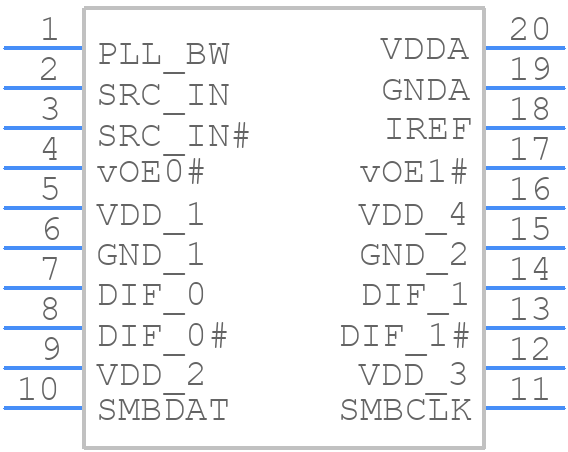

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
9DB233AGILF - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - PGG20
click to zoom
3D Models
9DB233AGILF - Renesas Electronics  - 3D model - Small Outline Packages - PGG20
click to zoom

9DB233AGILF Details

  • Manufacturer Part Number:

    9DB233AGILF

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    20

  • Manufacturer Package Code:

    PGG20

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    7

  • Family:

    9DB

  • Input Conditioning:

    DIFFERENTIAL

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Logic IC Type:

    PLL BASED CLOCK DRIVER

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Number of True Outputs:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Same Edge Skew-Max (tskwd):

    0.05 ns

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    3.465 V

  • Supply Voltage-Min (Vsup):

    3.135 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

9DB233AGILF Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (APL-AN-1201) for thermal management. It suggests using a 4-layer PCB with a thermal relief pattern, and placing the device near a thermal pad or heat sink.
  • Renesas recommends following their thermal design guidelines, using a heat sink or thermal pad, and ensuring good airflow around the device. Additionally, consider using a thermal interface material (TIM) to improve heat transfer.
  • Renesas recommends using a low-ESR ceramic capacitor (e.g., X5R or X7R) for CIN, with a value between 4.7uF to 10uF. For COUT, use a low-ESR ceramic or electrolytic capacitor with a value between 10uF to 22uF. Ensure the capacitors meet the specified voltage and ripple current ratings.
  • Renesas suggests following their EMI reduction guidelines, which include using a solid ground plane, minimizing trace lengths, and placing the device away from noise sources. Additionally, consider using shielding or a metal can to reduce radiated emissions.
  • Renesas recommends using a pi-filter (L-C-L) or a T-filter (L-C-R-L) for input voltage filtering, with a cutoff frequency around 1MHz to 10MHz. For output voltage filtering, use a simple RC filter or a more complex filter like a 3rd-order LC filter, depending on the specific application requirements.
