A1P35S12M3 - STMicroelectronics

Description: ACEPACK™ 1 sixpack topology, 1200 V, 35 A, trench gate field‑stop M series IGBT with soft diode and NTC

Download A1P35S12M3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

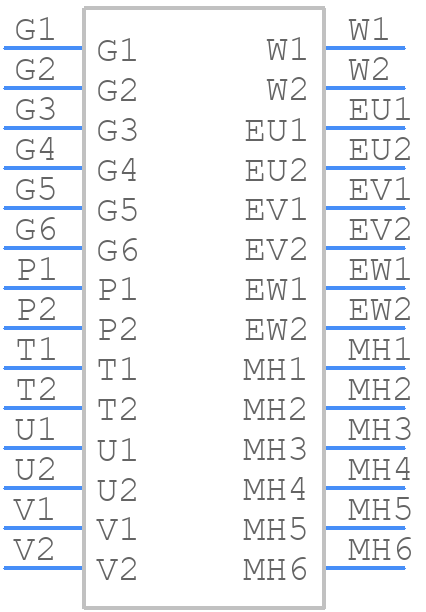

A1P35S12M3 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

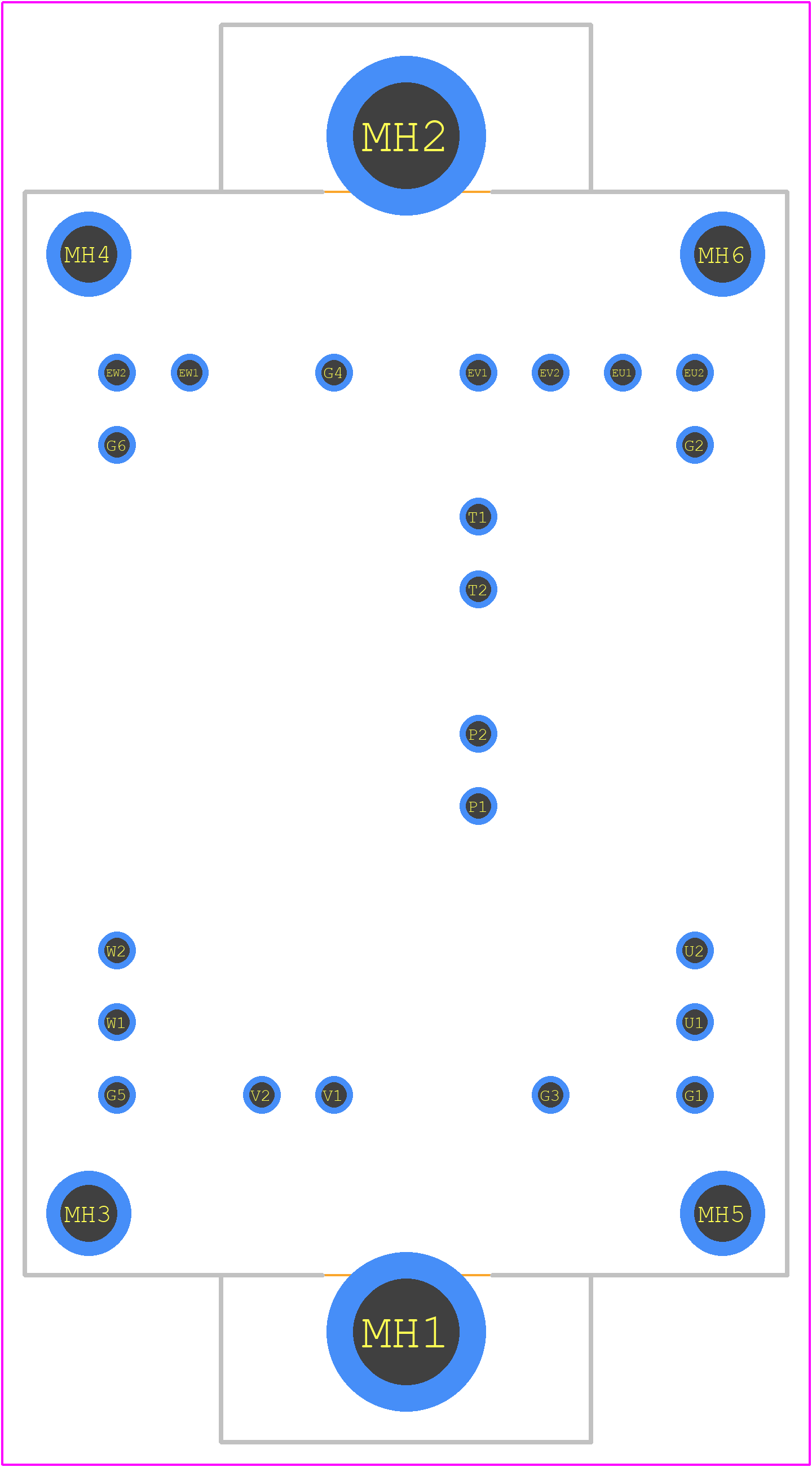

A1P35S12M3 - STMicroelectronics PCB footprint - Other - Other - A1P35S12M3-4
click to zoom
3D Models
A1P35S12M3 - STMicroelectronics - 3D model - Other - A1P35S12M3-4
click to zoom

A1P35S12M3 Details

  • Manufacturer Part Number:

    A1P35S12M3

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    53 Weeks, 1 Day

  • Date Of Intro:

    2018-02-16

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Case Connection:

    ISOLATED

  • Collector Current-Max (IC):

    35 A

  • Collector-Emitter Voltage-Max:

    1200 V

  • Configuration:

    COMPLEX

  • Gate-Emitter Thr Voltage-Max:

    7 V

  • Gate-Emitter Voltage-Max:

    20 V

  • JESD-30 Code:

    R-XUFM-X22

  • Number of Elements:

    6

  • Number of Terminals:

    22

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    250 W

  • Surface Mount:

    NO

  • Terminal Form:

    UNSPECIFIED

  • Terminal Position:

    UPPER

  • Transistor Application:

    POWER CONTROL

  • Transistor Element Material:

    SILICON

  • Turn-off Time-Nom (toff):

    398 ns

  • Turn-on Time-Nom (ton):

    142 ns

  • VCEsat-Max:

    2.45 V

A1P35S12M3 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the A1P35S12M3 is -40°C to 125°C, as specified in the datasheet. However, it's essential to note that the device's performance and reliability may degrade if operated outside this range.
  • To ensure proper power and decoupling, follow these guidelines: use a stable power supply, add decoupling capacitors (e.g., 100nF and 10uF) close to the device, and ensure the power lines are properly filtered and shielded.
  • The maximum allowed voltage on the input pins of the A1P35S12M3 is VCC + 0.5V, as specified in the datasheet. Exceeding this voltage may damage the device.
  • The A1P35S12M3 has built-in POR and BOR features. To handle these features, ensure that the power supply ramps up slowly (typically <10ms) and that the voltage stays above the BOR threshold (typically 2.2V) during operation.
  • For optimal performance and signal integrity, follow these PCB layout and routing guidelines: keep signal traces short and direct, use a solid ground plane, and avoid crossing signal traces over each other or over the device's power pins.
