A29100-025 - Omnetics

Description: 25 Position D-Type, Nano-D Receptacle, Female Sockets Connector

Download A29100-025 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

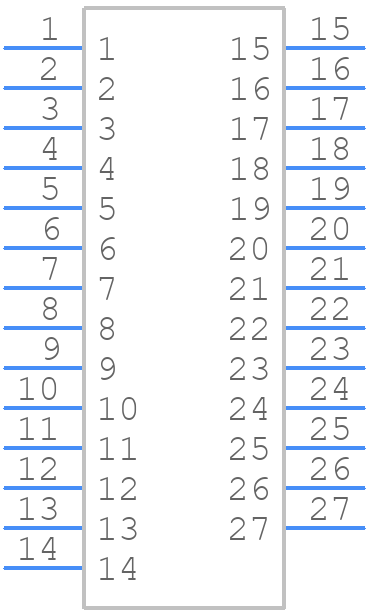

Symbol
A29100-025 - Omnetics - PCB symbol
click to zoom
PCB Footprints
A29100-025 - Omnetics PCB footprint - Other - Other - A29100-025-1
click to zoom
3D Models
A29100-025 - Omnetics - 3D model - Other - A29100-025-1
click to zoom

A29100-025 Details

  • Manufacturer Part Number:

    A29100-025

  • Part Life Cycle Code:

    Contact Manufacturer

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Omnetics Connector Corporation

  • Additional Feature:

    STANDARD: MIL-DTL-32139

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    D SUBMINIATURE CONNECTOR

  • Contact Finish Mating:

    GOLD

  • Contact Finish Termination:

    TIN LEAD

  • Contact Gender:

    FEMALE

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • JESD-609 Code:

    e0

  • MIL Conformance:

    YES

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Shell Finish:

    NICKEL

  • Shell Material:

    ALUMINUM ALLOY

  • Shell Size:

    3/B

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    25

A29100-025 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw locks on the A29100-025 connector is 0.5-1.5 in-lbs (0.056-0.169 Nm).
  • Yes, the A29100-025 connector is designed to withstand high-vibration environments and is suitable for use in applications such as aerospace, defense, and industrial equipment.
  • The operating temperature range of the A29100-025 connector is -55°C to 125°C (-67°F to 257°F).
  • Yes, the A29100-025 connector is designed to be resistant to harsh environments, including salt spray and humidity, and meets the requirements of MIL-DTL-83513.
  • Yes, the A29100-025 connector is designed for high-reliability and low-outgassing applications, making it suitable for use in space, aerospace, and other critical systems.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

A29100-025 Overview

Use the download button to access the A29100-025 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A2910, or try a keyword search, such as D Type Connectors
