A2C35S12M3-F - STMicroelectronics

Description: ACEPACK™ 2 converter inverter brake, 1200 V, 35 A, trench gate field‑stop M series IGBT with soft diode and NTC

Download A2C35S12M3-F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

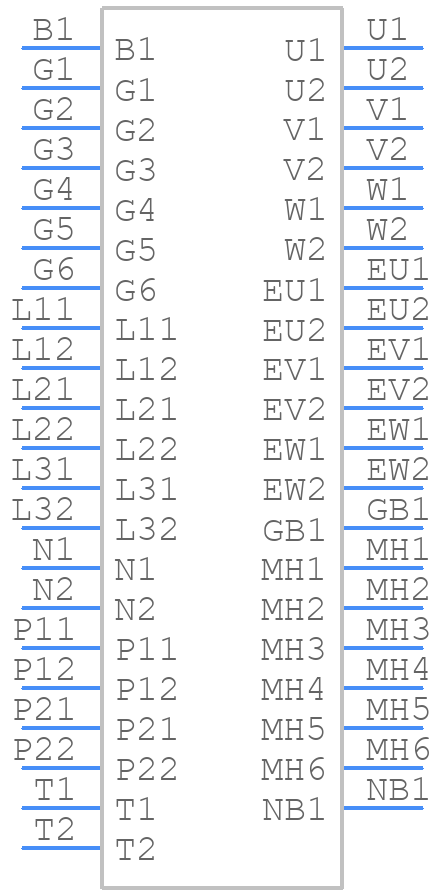

Symbol
A2C35S12M3-F - STMicroelectronics - PCB symbol
click to zoom

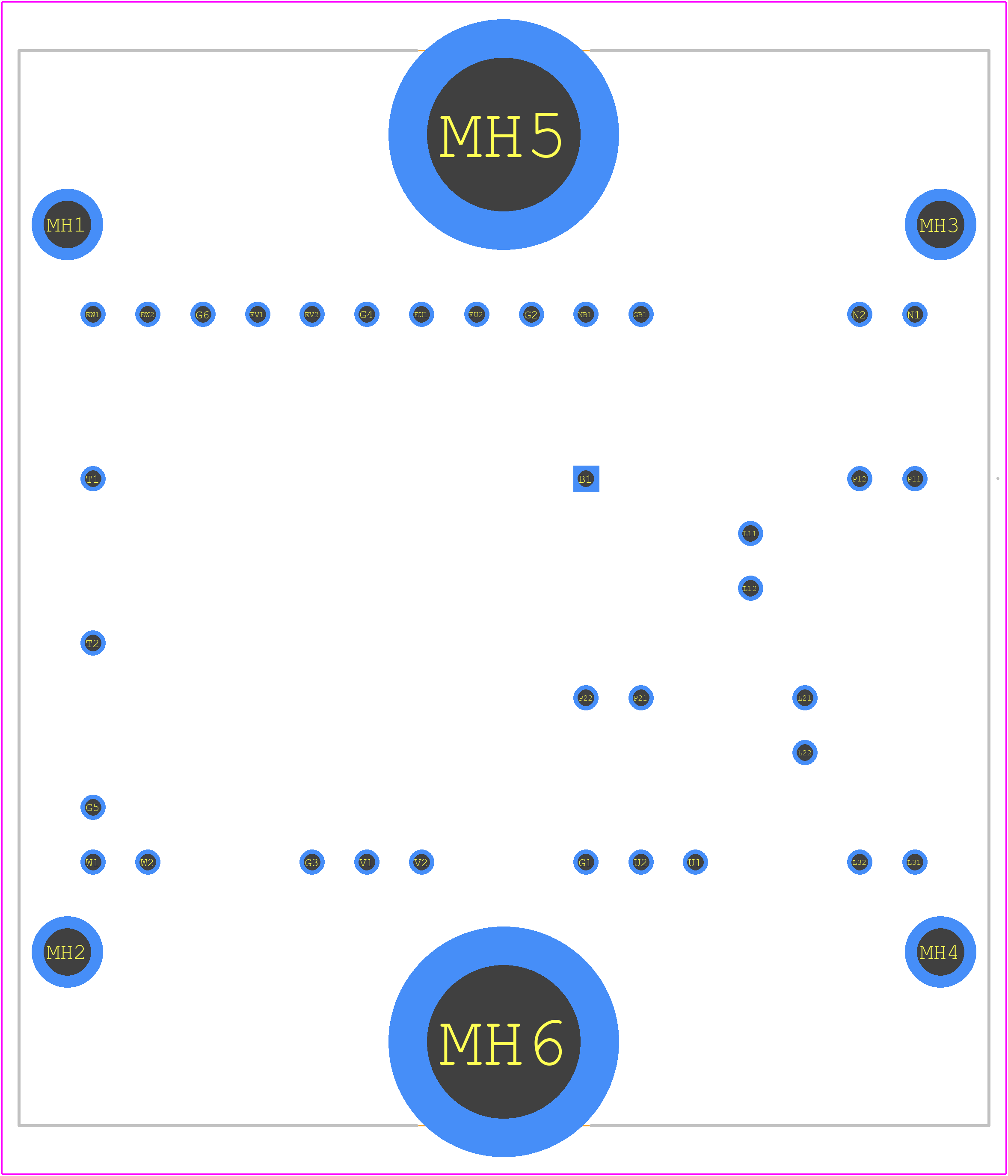

PCB Footprints
A2C35S12M3-F - STMicroelectronics PCB footprint - Other - Other - ACEPACK
click to zoom
3D Models
A2C35S12M3-F - STMicroelectronics - 3D model - Other - ACEPACK
click to zoom

A2C35S12M3-F Details

  • Manufacturer Part Number:

    A2C35S12M3-F

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    53 Weeks, 1 Day

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Case Connection:

    ISOLATED

  • Collector Current-Max (IC):

    35 A

  • Collector-Emitter Voltage-Max:

    1200 V

  • Configuration:

    COMPLEX

  • Gate-Emitter Thr Voltage-Max:

    7 V

  • Gate-Emitter Voltage-Max:

    20 V

  • JESD-30 Code:

    R-XUFM-X35

  • Number of Elements:

    7

  • Number of Terminals:

    35

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    250 W

  • Surface Mount:

    NO

  • Terminal Form:

    UNSPECIFIED

  • Terminal Position:

    UPPER

  • Transistor Application:

    POWER CONTROL

  • Transistor Element Material:

    SILICON

  • Turn-off Time-Nom (toff):

    364 ns

  • Turn-on Time-Nom (ton):

    145 ns

  • VCEsat-Max:

    2.45 V

A2C35S12M3-F Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in their application note AN5046, which includes guidelines for thermal pad connection, thermal vias, and copper pouring to ensure optimal thermal performance.
  • To handle the high current requirements, it's recommended to use a robust power supply, decoupling capacitors, and a low-ESR capacitor on the input pin. Additionally, ensure the PCB traces and vias are designed to handle the high current and minimize voltage drops.
  • The maximum operating temperature range for the A2C35S12M3-F is -40°C to 150°C, as specified in the datasheet. However, it's recommended to derate the device's performance and consider thermal management for high-temperature applications.
  • The OTP memory can be programmed using STMicroelectronics' proprietary software tools, such as the STM32CubeProgrammer or the STM32 OTP programming tool. Refer to the datasheet and application notes for detailed programming instructions.
  • To prevent ESD damage, it's recommended to use ESD protection devices, such as TVS diodes or ESD arrays, on the input and output pins. Additionally, follow proper handling and storage procedures to minimize the risk of ESD damage.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

A2C35S12M3-F Overview

Use the download button to access the A2C35S12M3-F schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A2C35, or try a keyword search, such as IGBTs
