A2P75S12M3 - STMicroelectronics

Description: ACEPACK™ 2 sixpack topology, 1200 V, 75 A trench gate field-stop IGBT M series, soft diode and NTC

Download A2P75S12M3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

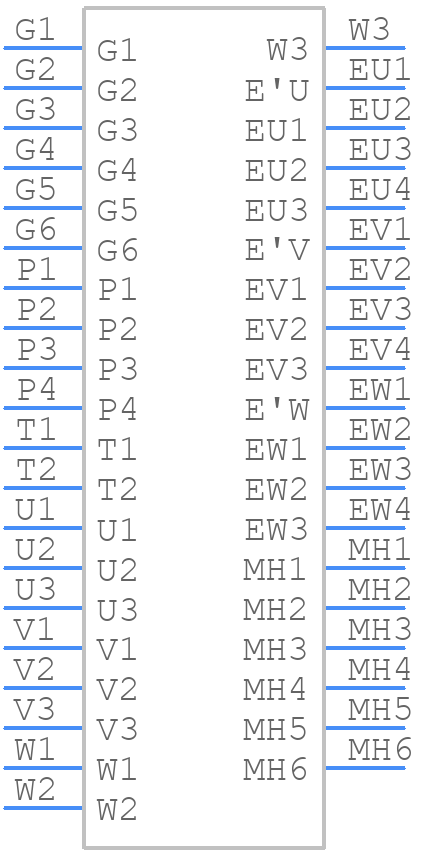

A2P75S12M3 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

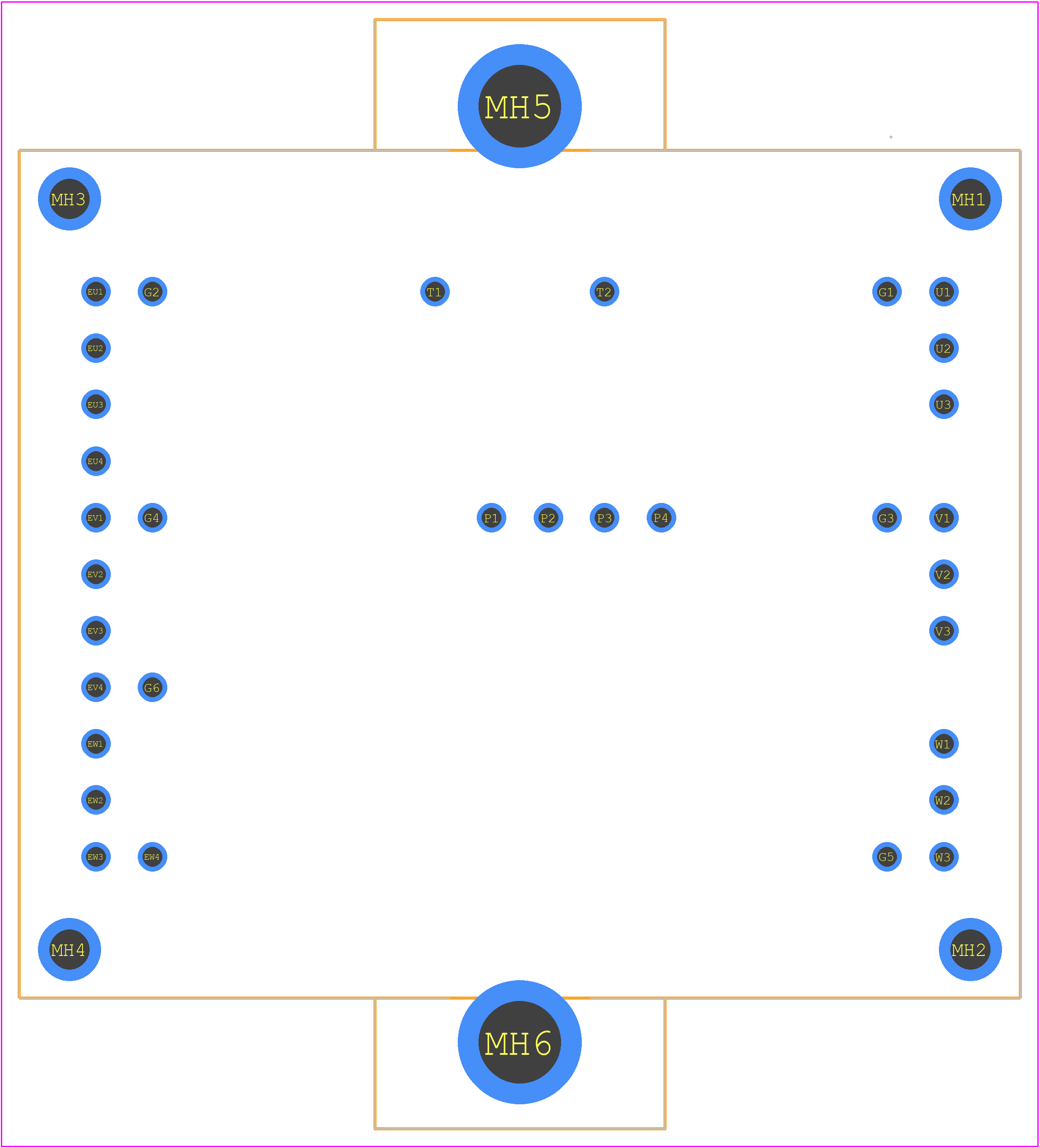

A2P75S12M3 - STMicroelectronics PCB footprint - Other - Other - A2P75S12M3-3
click to zoom
3D Models
A2P75S12M3 - STMicroelectronics - 3D model - Other - A2P75S12M3-3
click to zoom

A2P75S12M3 Details

  • Manufacturer Part Number:

    A2P75S12M3

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2018-03-16

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Case Connection:

    ISOLATED

  • Collector Current-Max (IC):

    75 A

  • Collector-Emitter Voltage-Max:

    1200 V

  • Configuration:

    BRIDGE, 6 ELEMENTS

  • Gate-Emitter Thr Voltage-Max:

    7 V

  • Gate-Emitter Voltage-Max:

    20 V

  • JESD-30 Code:

    R-XUFM-X33

  • Number of Elements:

    6

  • Number of Terminals:

    33

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    454.5 W

  • Surface Mount:

    NO

  • Terminal Form:

    UNSPECIFIED

  • Terminal Position:

    UPPER

  • Transistor Application:

    MOTOR CONTROL

  • Transistor Element Material:

    SILICON

  • Turn-off Time-Nom (toff):

    517 ns

  • Turn-on Time-Nom (ton):

    235 ns

  • VCEsat-Max:

    2.3 V
