A symmetrical layout with a central thermal pad connected to a large copper area on the PCB can help to dissipate heat efficiently. Additionally, using thermal vias and a thick copper layer can further improve thermal performance.
To ensure reliable operation in high-vibration environments, it is recommended to use a robust PCB design, secure the device with a sturdy mechanical fastening system, and consider using a vibration-dampening material such as a silicone adhesive or a vibration-absorbing mount.
The recommended soldering conditions for the A3906SESTR-T are a peak temperature of 260°C, a dwell time of 10-30 seconds, and a soldering iron temperature of 350°C. It is also recommended to use a solder with a melting point of 217°C or higher.
To troubleshoot issues with the device's output current, check the input voltage, output voltage, and output current using an oscilloscope or a multimeter. Verify that the device is properly connected and that the output is not overloaded. Also, check for any signs of overheating or physical damage.
To prevent electrostatic discharge (ESD) damage, it is recommended to handle the device by the body or use an ESD wrist strap, use ESD-protected work surfaces and tools, and store the device in an ESD-protected package.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
A3906SESTR-T Overview

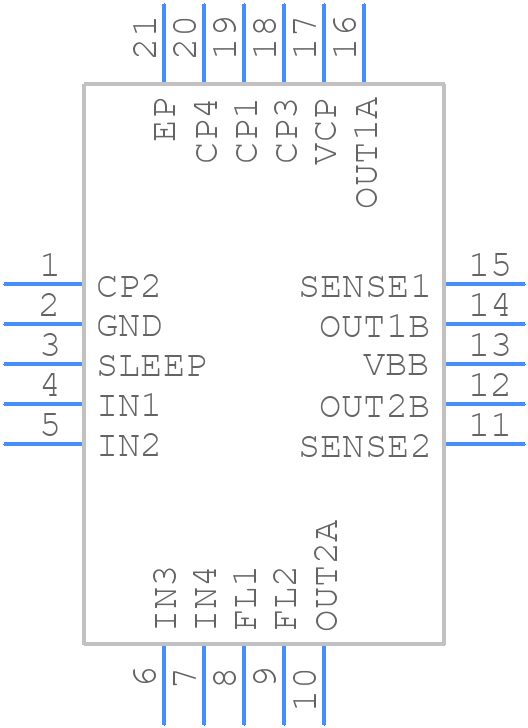

Use the download button to access the A3906SESTR-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A3906,
or try a keyword search, such as Motion Control Electronics
Suggested Parts
If you searched for A3906SESTR-T, you might also be interested in these parts:
