SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.06 mm
Supply Current-Max (Isup):
8 mA
Supply Voltage-Max (Vsup):
18 V
Supply Voltage-Min (Vsup):
4 V
Supply Voltage-Nom (Vsup):
12 V
Surface Mount:
YES
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
40
Width:
3 mm
A3909GLYTR-T Frequently Asked Questions (FAQs)
A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good airflow around the device. The datasheet provides some guidelines, but it's recommended to consult with Allegro's application notes and thermal management guidelines for more detailed information.
To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using thermal interface materials, and ensuring good airflow. Additionally, the device should be operated within its specified temperature range, and the junction temperature should be monitored to prevent overheating.
The recommended soldering profiles for the A3909GLYTR-T can be found in Allegro's soldering guidelines document, which provides detailed information on temperature profiles, soldering times, and other parameters to ensure reliable assembly.
To troubleshoot issues with the device's output current or voltage regulation, start by verifying the input voltage, output load, and PCB layout. Check for any signs of overheating, and ensure that the device is operated within its specified parameters. If the issue persists, consult Allegro's application notes and troubleshooting guides for more detailed guidance.
The A3909GLYTR-T has built-in ESD protection, but it's still essential to follow proper handling and storage precautions to prevent damage. This includes using anti-static wrist straps, mats, and bags, and avoiding direct contact with the device's pins.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
A3909GLYTR-T Overview

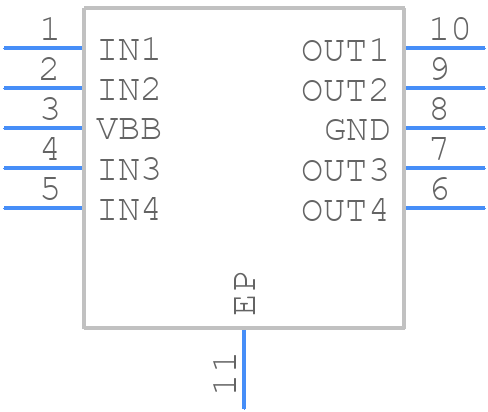

Use the download button to access the A3909GLYTR-T schematic symbol, PCB footprint, and 3D model.
