A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good airflow around the device. The datasheet provides some guidelines, but it's recommended to consult with Allegro's application notes and thermal management guidelines for more detailed information.
To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using thermal interface materials, and ensuring good airflow. Additionally, the device should be operated within its specified temperature range, and the junction temperature should be monitored to prevent overheating.
The recommended decoupling capacitor values and placement for the A3916GESTR-T are not explicitly stated in the datasheet. However, Allegro recommends using a 10uF to 22uF ceramic capacitor with a voltage rating of 10V to 25V, placed as close to the device as possible, and connected between the VCC and GND pins.
To troubleshoot issues with the device's output voltage regulation, start by verifying the input voltage, output voltage, and load current. Check for any signs of overheating, and ensure that the device is properly decoupled. If the issue persists, consult Allegro's application notes and troubleshooting guides for more detailed guidance.
Operating the device beyond its specified maximum ratings can lead to reduced reliability, decreased performance, and even permanent damage to the device. It's essential to operate the device within its specified ratings to ensure reliable and safe operation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
A3916GESTR-T Overview

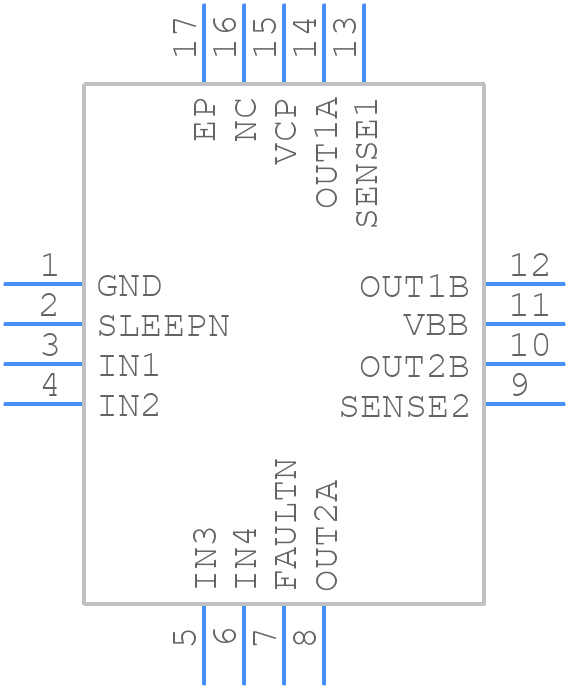

Use the download button to access the A3916GESTR-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A3916,
or try a keyword search, such as Motion Control Electronics
