Allegro recommends a 2-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern on the top layer to minimize thermal resistance. A minimum of 2 oz copper thickness is recommended.
Use a robust PCB design with a secure component mounting, and consider adding mechanical stress-relief features such as PCB stiffeners or component anchoring. Ensure proper soldering and cleaning to prevent whisker growth.
The maximum allowable voltage on the VCC pin during power-up or power-down is 16V. Exceeding this voltage may cause damage to the device.
Use ESD protection devices such as TVS diodes or ESD arrays on the input and output pins. Ensure proper PCB design and layout to minimize ESD susceptibility.
The recommended operating temperature range for the A3949SLBTR-T is -40°C to 150°C. Operating outside this range may affect device performance and reliability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
A3949SLBTR-T Overview

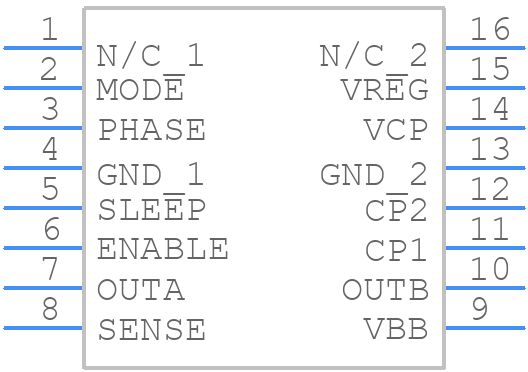

Use the download button to access the A3949SLBTR-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A3949,
or try a keyword search, such as Motion Control Electronics
