A good PCB layout for the A3950SEUTR-T involves keeping the high-current paths short and wide, using a solid ground plane, and placing the device close to the battery. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the high-current path.
To ensure proper thermal management, it's recommended to attach a heat sink to the device, use a thermal interface material, and ensure good airflow around the device. The device's thermal pad should be connected to a solid ground plane to help dissipate heat.
The recommended input capacitor is a 10uF ceramic capacitor with a voltage rating of 25V or higher, and the recommended output capacitor is a 22uF ceramic capacitor with a voltage rating of 25V or higher. The capacitors should be placed as close to the device as possible.
The A3950SEUTR-T can be configured using external resistors to set the output voltage and current limit. The device also has an enable input that can be used to turn the device on and off. The datasheet provides a detailed description of how to configure the device for specific applications.
To minimize EMI and EMC issues, it's recommended to use a shielded inductor, keep the high-current paths short and away from sensitive circuits, and use a common-mode choke to filter the output. Additionally, the device should be placed in a metal enclosure to reduce radiation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
A3950SEUTR-T Overview

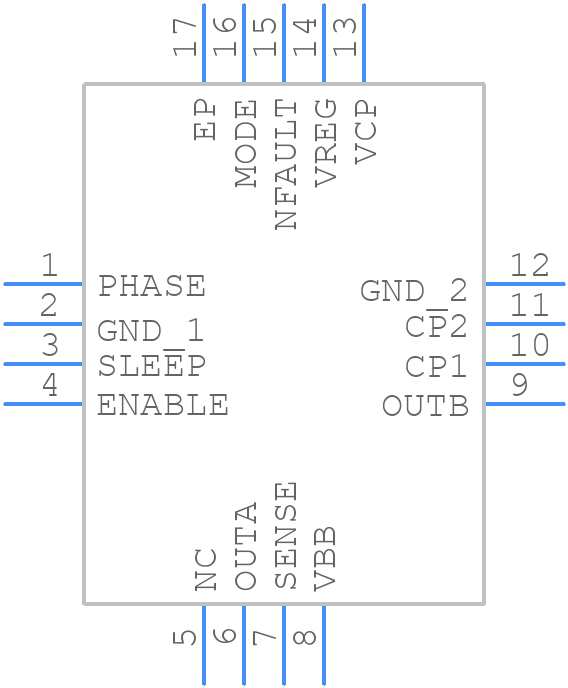

Use the download button to access the A3950SEUTR-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A3950,
or try a keyword search, such as Motion Control Electronics
