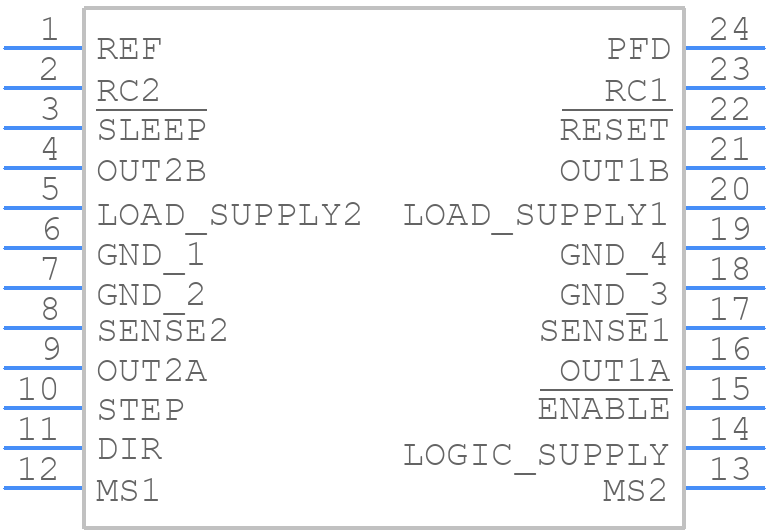

A3967SLB-T - Allegro Microsystems

A3967SLB-T Details

• Manufacturer Part Number:

  A3967SLB-T

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  SOIC

• Package Description:

  LEAD FREE, MS-013AD, SOIC-24

• Pin Count:

  24

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Allegro MicroSystems LLC

• YTEOL:

  0

• Additional Feature:

  ALSO REQUIRES A 4.75V TO 30V SUPPLY

• Analog IC - Other Type:

  STEPPER MOTOR CONTROLLER

• JESD-30 Code:

  R-PDSO-G24

• JESD-609 Code:

  e3

• Length:

  15.4 mm

• Moisture Sensitivity Level:

  3

• Number of Functions:

  2

• Number of Terminals:

  24

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -20 °C

• Output Current-Max:

  0.85 A

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP24,.4

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  2.65 mm

• Supply Current-Max (Isup):

  65 mA

• Supply Voltage-Max (Vsup):

  5.5 V

• Supply Voltage-Min (Vsup):

  3 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  YES

• Technology:

  BIPOLAR

• Temperature Grade:

  OTHER

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  40

• Width:

  7.5 mm
