Allegro provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the sense lines short and away from noise sources, and using a solid ground plane to reduce EMI.
The A3977KEDTR-T has built-in thermal shutdown and overcurrent protection. Ensure that your design includes proper thermal management, such as a heat sink, and implement overcurrent detection and protection mechanisms, like a fuse or a current sense resistor.
The datasheet recommends a 10 μF to 22 μF ceramic capacitor with an X7R or X5R dielectric. However, the optimal value may vary depending on the specific application and operating conditions. It's essential to evaluate the input capacitor's performance and stability in your design.
To ensure accurate current sensing, follow the recommended PCB layout, use a low-impedance current sense resistor, and minimize noise and interference on the sense lines. Additionally, consider using a high-precision current sense amplifier and calibrate the system to account for any offsets or gain errors.
Operating the A3977KEDTR-T at high temperatures can affect its performance, reliability, and lifespan. Ensure that your design includes proper thermal management, and consider derating the device's performance and specifications according to the datasheet's thermal derating curves.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
A3977KEDTR-T Overview

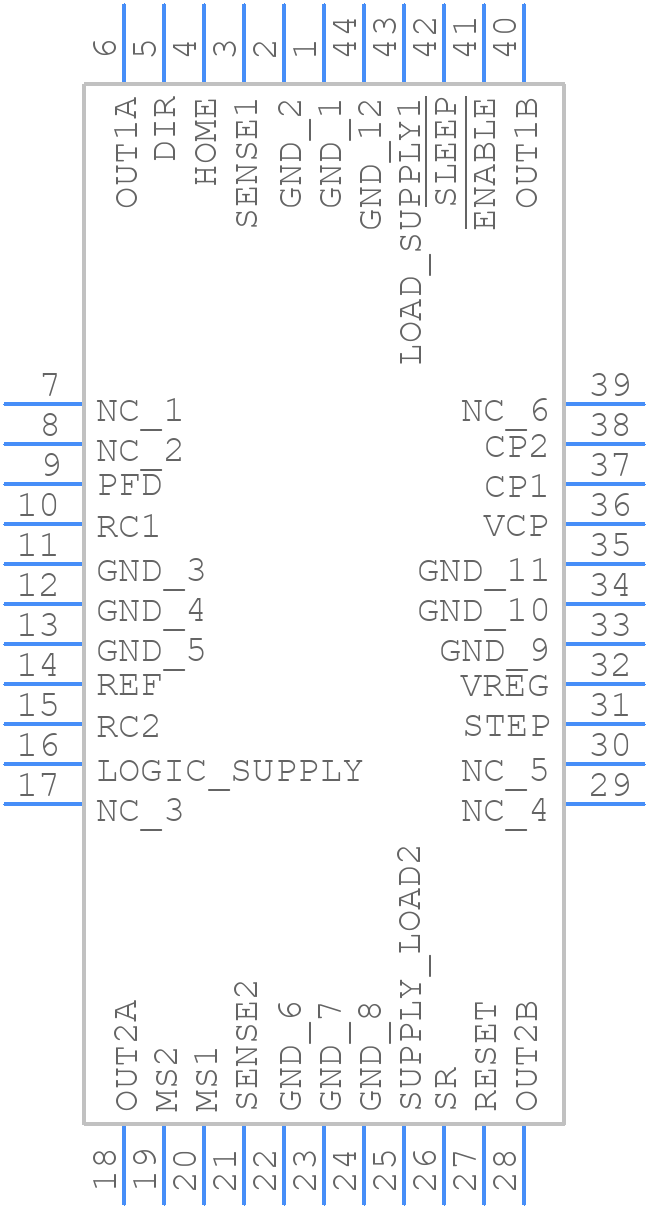

Use the download button to access the A3977KEDTR-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A3977,
or try a keyword search, such as Motion Control Electronics
