A3982SLB-T - Allegro Microsystems

Description: ALLEGRO MICROSYSTEMS - A3982SLB-T - DMOS Stepper Motor Driver with Translator, 3V to 5.5V supply, 35V/2A/4 Outputs, SOIC-24

Download A3982SLB-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

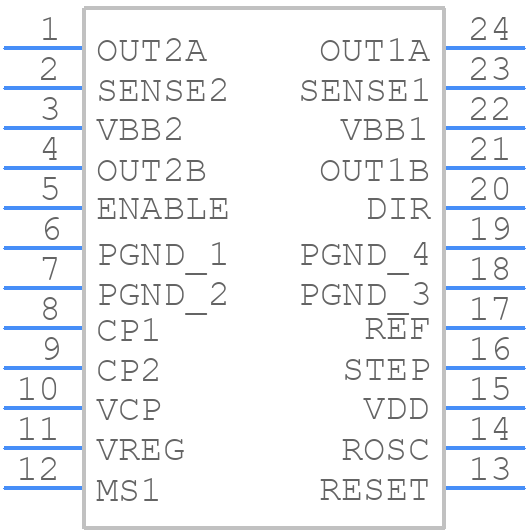

Symbol
A3982SLB-T - Allegro Microsystems - PCB symbol
click to zoom
PCB Footprints
A3982SLB-T - Allegro Microsystems PCB footprint - Small Outline Packages - Small Outline Packages - A3982SLB-T
click to zoom
3D Models
A3982SLB-T - Allegro Microsystems - 3D model - Small Outline Packages - A3982SLB-T
click to zoom

A3982SLB-T Details

  • Manufacturer Part Number:

    A3982SLB-T

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    24

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    7

  • Analog IC - Other Type:

    STEPPER MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    15.4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Output Current-Max:

    2 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP24,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    NMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    7.5 mm

A3982SLB-T Frequently Asked Questions (FAQs)

  • Allegro provides a recommended PCB layout in their application note AN296040, which includes guidelines for component placement, trace routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The sense resistor value depends on the maximum current rating of the A3982SLB-T and the desired current sense accuracy. Allegro provides a sense resistor calculation tool on their website, which can help engineers determine the optimal sense resistor value for their specific application.
  • The A3982SLB-T has an operating temperature range of -40°C to 150°C, but the maximum junction temperature (TJ) should not exceed 150°C. Engineers should ensure that the device is properly cooled and that the maximum TJ is not exceeded to ensure reliable operation.
  • The A3982SLB-T has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor and capacitor network. Allegro provides a detailed application note (AN296041) that explains how to implement overcurrent protection using the A3982SLB-T.
  • Allegro recommends using a 10 μF to 22 μF decoupling capacitor with a voltage rating of 25 V or higher, placed as close as possible to the VCC pin of the A3982SLB-T. This helps to filter out noise and ensure stable operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

A3982SLB-T Overview

Use the download button to access the A3982SLB-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A3982, or try a keyword search, such as Motion Control Electronics
