A3982SLBTR-T - Allegro Microsystems

Description: Dual 1.5 Full Bridge Motor Driver

Download A3982SLBTR-T Model

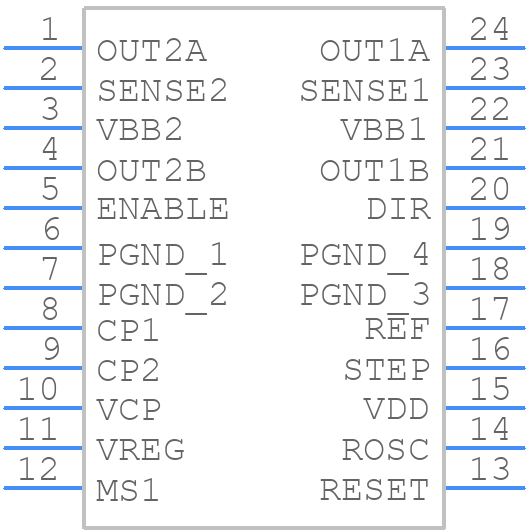

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

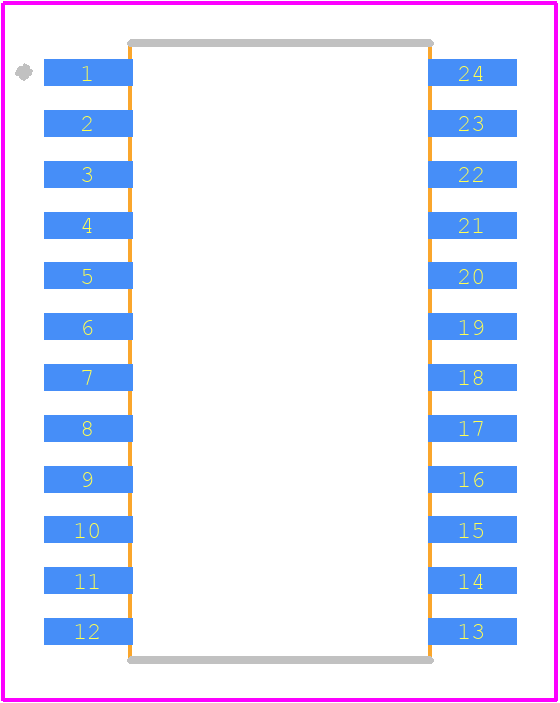

PCB Footprints
A3982SLBTR-T - Allegro Microsystems PCB footprint - Other - Other - LB 24-pin SOICW
click to zoom
3D Models
A3982SLBTR-T - Allegro Microsystems  - 3D model - Other - LB 24-pin SOICW
click to zoom

A3982SLBTR-T Details

  • Manufacturer Part Number:

    A3982SLBTR-T

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    24

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    7

  • Analog IC - Other Type:

    STEPPER MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    15.4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Output Current-Max:

    2 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP24,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max (Isup):

    8 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    NMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    7.5 mm

A3982SLBTR-T Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the A3982SLBTR-T is -40°C to 150°C.
  • To ensure proper thermal management, it is recommended to provide a heat sink or thermal pad on the IC, and to keep the device away from heat sources and air flow restrictions.
  • The recommended PCB layout for the A3982SLBTR-T involves keeping the device away from high-current carrying traces, using a solid ground plane, and minimizing the length of the power traces.
  • To troubleshoot issues with the A3982SLBTR-T, check the power supply voltage, ensure proper thermal management, and verify the input and output connections. Also, consult the datasheet and application notes for guidance.
  • Yes, the A3982SLBTR-T is designed to operate in high-vibration environments, but it is recommended to follow proper mounting and soldering procedures to ensure reliability.
