A3988SJPTR-1-T - Allegro Microsystems

Description: Quad DMOS Full Bridge PWM Motor Driver

Download A3988SJPTR-1-T Model

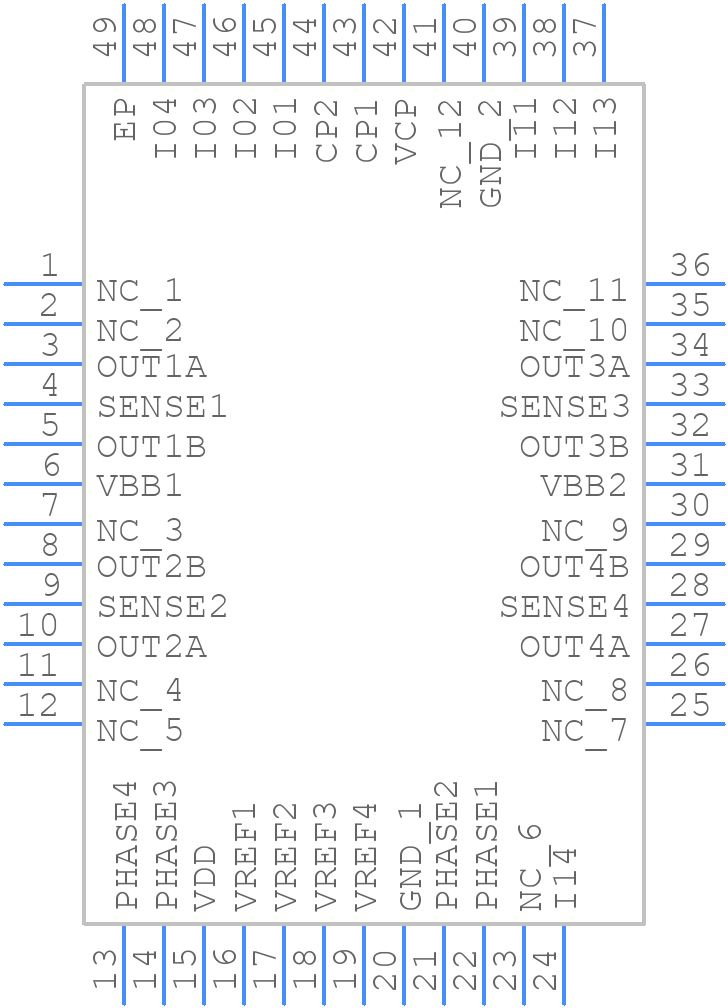

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
A3988SJPTR-1-T - Allegro Microsystems PCB footprint - Quad Flat Packages - Quad Flat Packages - JP Package, 48-Pin LQFP with Exposed Thermal Pad
click to zoom
3D Models
A3988SJPTR-1-T - Allegro Microsystems  - 3D model - Quad Flat Packages - JP Package, 48-Pin LQFP with Exposed Thermal Pad
click to zoom

A3988SJPTR-1-T Details

  • Manufacturer Part Number:

    A3988SJPTR-1-T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    0

  • Analog IC - Other Type:

    STEPPER MOTOR CONTROLLER

  • JESD-609 Code:

    e3

  • Terminal Finish:

    MATTE TIN

A3988SJPTR-1-T Frequently Asked Questions (FAQs)

  • Allegro recommends a 2-layer or 4-layer PCB with a solid ground plane on the bottom layer to improve thermal performance. Additionally, keeping the device away from heat sources and using thermal vias can help reduce thermal resistance.
  • To ensure reliable operation in high-vibration environments, Allegro recommends using a robust PCB design, securing the device with a suitable mounting method, and using a conformal coating to protect the device from moisture and contaminants.
  • Allegro recommends a soldering profile with a peak temperature of 260°C (500°F) for a maximum of 10 seconds, and a ramp-up rate of 3°C/s (5.4°F/s) to minimize thermal stress on the device.
  • Yes, the A3988SJPTR-1-T is AEC-Q100 qualified, making it suitable for automotive applications. However, it's essential to ensure that the device is used within its specified operating conditions and that the system design meets the required automotive standards.
  • To troubleshoot issues with the device's output current, check the input voltage, output load, and PCB layout for any signs of overheating or voltage drops. Also, verify that the device is properly configured and that the output current is within the specified limits.
