8 X 8 MM, 0.90 MM HEIGHT, 0.40 MM PITCH, GREEN, QFN-48
HTS Code:
8542.31.00.60
Manufacturer:
Microsemi Corporation (now Microchip)
JESD-30 Code:
S-XQCC-N48
JESD-609 Code:
e3
Length:
6 mm
Moisture Sensitivity Level:
3
Number of CLBs:
768
Number of Equivalent Gates:
30000
Number of Terminals:
48
Operating Temperature-Max:
100 °C
Operating Temperature-Min:
-40 °C
Organization:
768 CLBS, 30000 GATES
Package Body Material:
UNSPECIFIED
Package Code:
HQCCN
Package Equivalence Code:
LCC48,.24SQ,16
Package Shape:
SQUARE
Package Style:
CHIP CARRIER, HEAT SINK/SLUG
Peak Reflow Temperature (Cel):
260
Programmable Logic Type:
FIELD PROGRAMMABLE GATE ARRAY
Qualification Status:
Not Qualified
Supply Voltage-Max:
1.575 V
Supply Voltage-Min:
1.425 V
Supply Voltage-Nom:
1.5 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
NO LEAD
Terminal Pitch:
0.4 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
6 mm
A3P030-QNG48I Frequently Asked Questions (FAQs)
Microsemi provides a PCB design guide that includes layout and routing guidelines for the A3P030-QNG48I. It's recommended to follow these guidelines to ensure signal integrity and minimize electromagnetic interference (EMI).
A reliable POR circuit can be implemented using a voltage supervisor IC, such as the Microsemi LX7167, which provides a reset signal to the FPGA during power-up. The POR circuit should be designed to ensure that the FPGA is held in reset until the power supply voltage reaches a stable level.
The A3P030-QNG48I has a maximum junction temperature of 100°C. To ensure reliable operation, it's essential to implement proper thermal management, including heat sinks, thermal interfaces, and airflow management. Microsemi provides thermal modeling and simulation tools to help with thermal design.
Microsemi provides a range of security features, including AES encryption, secure boot, and anti-tamper protection. Additionally, designers can implement their own security measures, such as secure key storage and access control, to protect their IP and prevent unauthorized access.
The A3P030-QNG48I is designed to withstand the harsh radiation environments found in space and aerospace applications. It features radiation-hardened flip-flops, memory, and other components, which provide immunity to single-event effects (SEEs) and total ionizing dose (TID) effects. This enables reliable operation in extreme environments.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
A3P030-QNG48I Overview

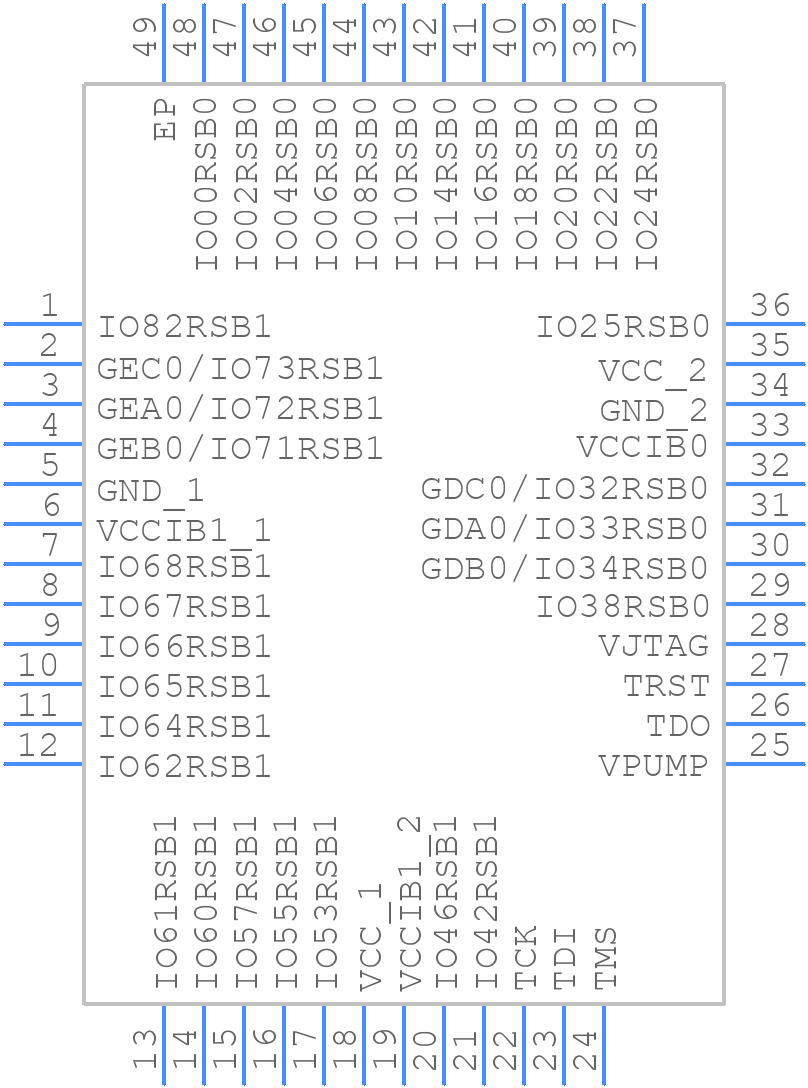

Use the download button to access the A3P030-QNG48I schematic symbol, PCB footprint, and 3D model.
