SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Seated Height-Max:
1.1 mm
Supply Voltage-Max (Vsup):
36 V
Supply Voltage-Min (Vsup):
2.8 V
Supply Voltage-Nom (Vsup):
13.5 V
Surface Mount:
YES
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
DUAL
Width:
4.4 mm
A4408KLVTR-T Frequently Asked Questions (FAQs)
Allegro provides a recommended PCB layout in the application note AN296068, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and thermal dissipation.
The output current of the A4408KLVTR-T can be calculated using the formula: IOUT = (VIN - VOUT) / RSENSE, where VIN is the input voltage, VOUT is the output voltage, and RSENSE is the sense resistor value. Refer to the datasheet for more information on sense resistor selection.
The A4408KLVTR-T has an operating temperature range of -40°C to 150°C, with a junction temperature (TJ) rating of 150°C. However, the device's performance and reliability may degrade at higher temperatures, so it's essential to ensure proper thermal management and cooling.
Yes, the A4408KLVTR-T is designed to withstand high-vibration environments. Allegro specifies a vibration rating of 10G peak acceleration, 10-2000 Hz frequency range, and 1-hour duration. However, it's essential to ensure proper PCB mounting and mechanical design to minimize the risk of mechanical failure.
Allegro provides a troubleshooting guide in the datasheet, which covers common issues such as output voltage errors, overcurrent protection, and thermal shutdown. Additionally, Allegro's application notes and technical support resources can provide further guidance and assistance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
A4408KLVTR-T Overview

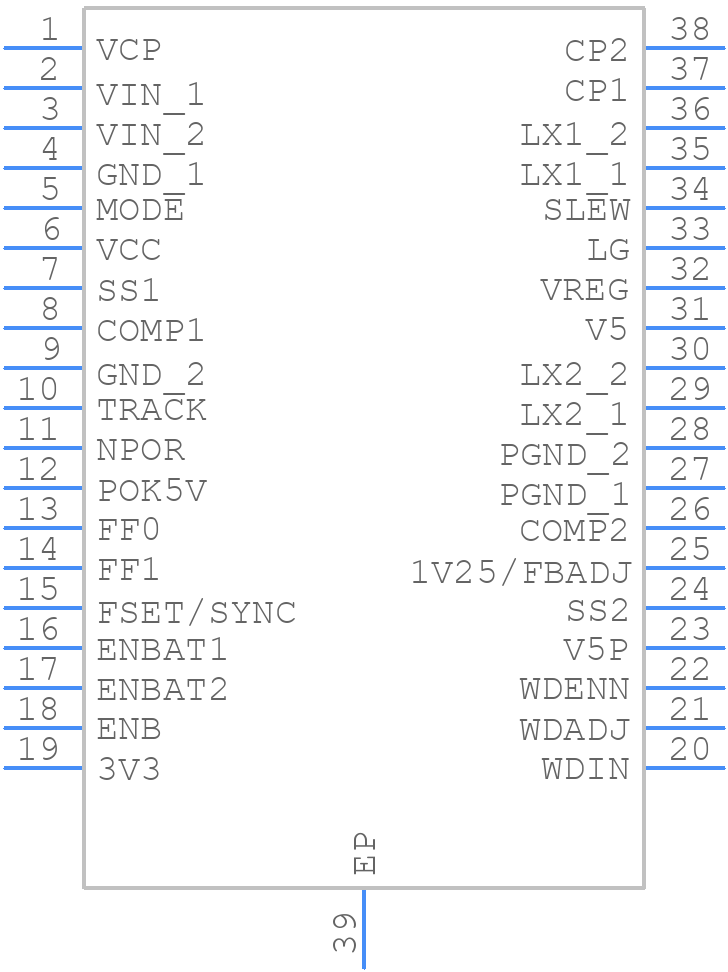

Use the download button to access the A4408KLVTR-T schematic symbol, PCB footprint, and 3D model.
