A4412KLVTR-T - Allegro Microsystems

Description: Automotive Buck-Boost PMIC W/5 Ldo Outputs

Download A4412KLVTR-T Model

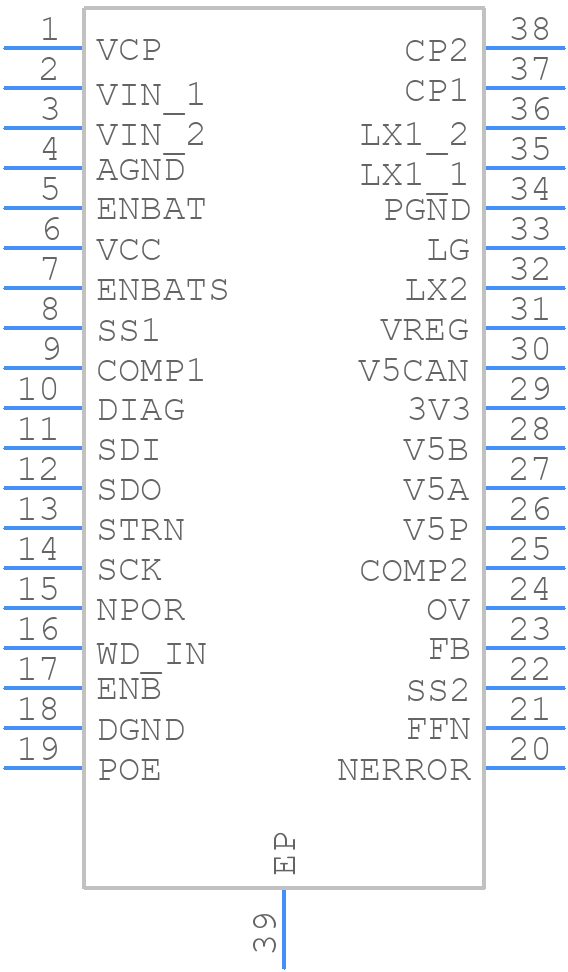

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
A4412KLVTR-T - Allegro Microsystems PCB footprint - Small Outline Packages - Small Outline Packages - Package LV, 38-Pin eTSSOP with Exposed Pad+
click to zoom
3D Models
A4412KLVTR-T - Allegro Microsystems  - 3D model - Small Outline Packages - Package LV, 38-Pin eTSSOP with Exposed Pad+
click to zoom

A4412KLVTR-T Details

  • Manufacturer Part Number:

    A4412KLVTR-T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSSOP-38

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    7

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • JESD-30 Code:

    R-PDSO-G38

  • JESD-609 Code:

    e3

  • Length:

    9.7 mm

  • Number of Channels:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    38

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP38,.25,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    40 V

  • Supply Voltage-Min (Vsup):

    3.8 V

  • Supply Voltage-Nom (Vsup):

    13.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

A4412KLVTR-T Frequently Asked Questions (FAQs)

  • A good thermal design should include a solid copper plane on the PCB, connected to the GND pin, to help dissipate heat. Additionally, keeping the component side of the PCB clear of other components and traces can improve airflow and heat dissipation.
  • To ensure reliable operation in high-vibration environments, it is recommended to use a robust PCB design, secure the device with a sturdy mechanical fastening system, and consider using a conformal coating to protect the device from moisture and contaminants.
  • The recommended soldering conditions for the A4412KLVTR-T are a peak temperature of 260°C, with a dwell time of 10-30 seconds. It is also recommended to use a solder with a melting point of 217°C to 221°C.
  • To troubleshoot issues with the device's output voltage regulation, check the input voltage, output voltage, and output current. Verify that the input voltage is within the recommended range, and that the output voltage is within the specified tolerance. Also, check for any signs of overheating or excessive current draw.
  • To prevent electrostatic discharge (ESD) damage, it is recommended to handle the device by the body, avoid touching the pins, and use an ESD wrist strap or mat. Additionally, ensure that the PCB design includes ESD protection components, such as TVS diodes or ESD protection arrays.
