Allegro provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the sense lines short and away from noise sources, and using a solid ground plane to minimize noise coupling.
The A4413KETTR-J does not require calibration. It is a self-contained Hall-effect sensor with an integrated amplifier and analog-to-digital converter. The device is calibrated during the manufacturing process, and no external calibration is needed.
The A4413KETTR-J has an operating temperature range of -40°C to 150°C. However, it's essential to note that the device's accuracy and performance may degrade at extreme temperatures.
Yes, the A4413KETTR-J is designed to operate in high-vibration environments. It has a robust mechanical design and is suitable for use in applications with high mechanical stress, such as in automotive and industrial systems.
To minimize EMI, use proper shielding, grounding, and layout techniques. Keep the sense lines short and away from noise sources, and use a solid ground plane to minimize noise coupling. Additionally, consider using EMI filters or shielding on the PCB to reduce electromagnetic radiation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
A4413KETTR-J Overview

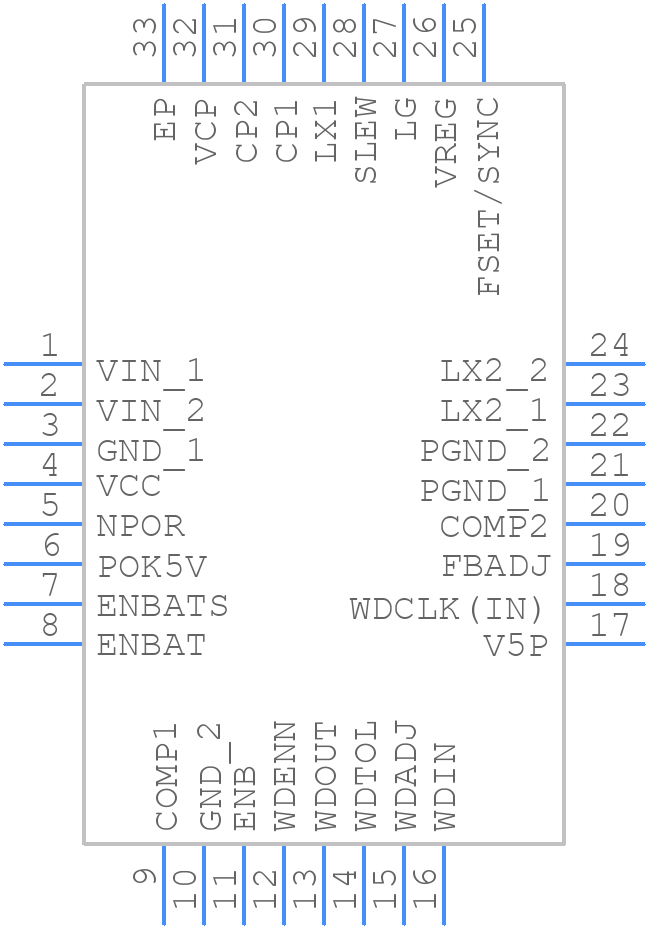

Use the download button to access the A4413KETTR-J schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A4413,
or try a keyword search, such as Power Management Circuits
