The maximum operating temperature range for the A4949GLJTR-T is -40°C to 150°C.
The A4949GLJTR-T requires a single 5V power supply, and it's recommended to use a decoupling capacitor of 10nF to 100nF between the VCC and GND pins to ensure stable operation.
The typical current consumption of the A4949GLJTR-T is around 10mA, but it can vary depending on the operating frequency and output load.
The A4949GLJTR-T can be configured using external resistors and capacitors to set the switching frequency, output voltage, and other parameters. Refer to the application notes and design guides provided by Allegro MicroSystems for specific configuration examples.
The maximum output current of the A4949GLJTR-T is 2A, but it's recommended to derate the output current based on the ambient temperature and other operating conditions.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
A4949GLJTR-T Overview

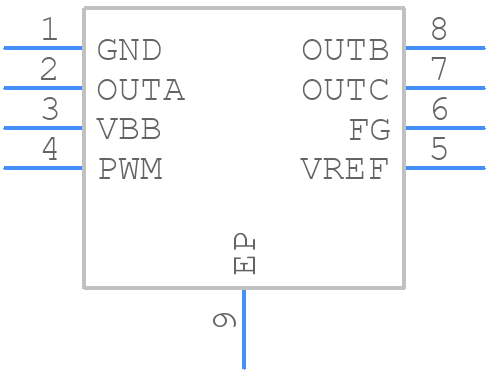

Use the download button to access the A4949GLJTR-T schematic symbol, PCB footprint, and 3D model.
