Part Image

A4949GLTR-T - Allegro Microsystems

Description: Sensorless Sinusoidal Fan Driver

Download A4949GLTR-T Model

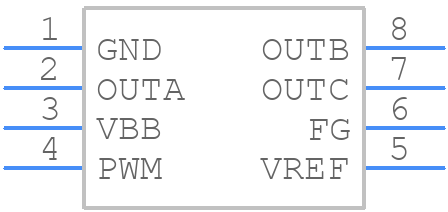

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
A4949GLTR-T - Allegro Microsystems PCB footprint - Other - Other - Package L, 8-Pin SOIC
click to zoom
3D Models
A4949GLTR-T - Allegro Microsystems  - 3D model - Other - Package L, 8-Pin SOIC
click to zoom

A4949GLTR-T Details

  • Manufacturer Part Number:

    A4949GLTR-T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Allegro MicroSystems LLC

  • Analog IC - Other Type:

    AC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.8 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    15 mA

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    4 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

A4949GLTR-T Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the A4949GLTR-T is -40°C to 150°C.
  • The A4949GLTR-T requires a single 5V power supply, and it's recommended to use a decoupling capacitor of at least 10uF between the VCC and GND pins to ensure stable operation.
  • The maximum current rating for the A4949GLTR-T is 2.5A, but it's recommended to keep the current below 2A for reliable operation.
  • The A4949GLTR-T can be configured for different motor types by adjusting the external resistors and capacitors connected to the device. Refer to the application note AN296070 for specific configuration guidelines.
  • The diagnostic output (DO) pin provides a logic-level output that indicates the device's operating status, such as overcurrent, overtemperature, or undervoltage conditions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

A4949GLTR-T Overview

Use the download button to access the A4949GLTR-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A4949, or try a keyword search, such as Motion Control Electronics
