A5932GESSR-1-T footprint, schematic symbol and 3D model by Allegro Microsystems

A5932GESSR-1-T - Allegro Microsystems

Description: Automotive grade, AEC-Q100 qualified • Sinusoidal drive for low vibration and noise • Configurable closed loop speed curves • RD output • Quiet startup • Proprietary high-efficiency control algorithm • Automatic phase advance • Windmill detection • Fault output • FG speed output • Lock detection • Overcurrent limit (OCL) • Short-circuit protection (OCP) • Direction input • Brake input • Adjustable gate drive

Download A5932GESSR-1-T Model

Schematic
symbols

PCB
footprints

3D
models

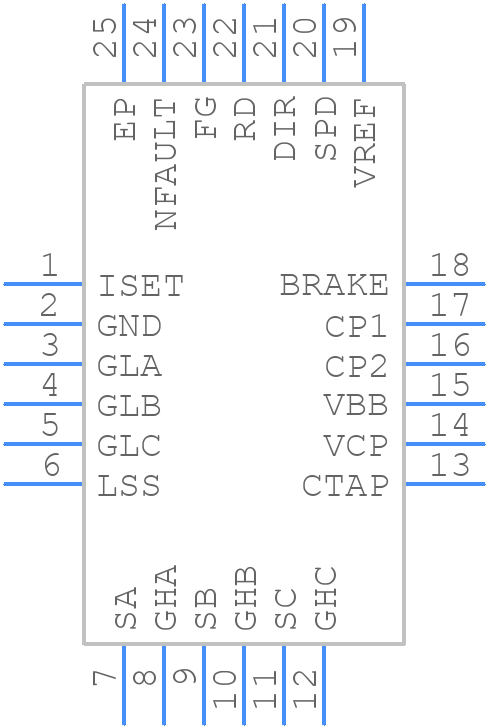

Symbol

click to zoom

PCB Footprints

A5932GESSR-1-T - Allegro Microsystems PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - : Package ES, 24-Contact QFN with Exposed Pad

click to zoom

3D Models

A5932GESSR-1-T - Allegro Microsystems - 3D model - Quad Flat No-Lead - : Package ES, 24-Contact QFN with Exposed Pad

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for A5932GESSR-1-T
Part Number A5932GESSR-1-T
Manufacturer Allegro Microsystems
Pin Count 25
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - : Package ES, 24-Contact QFN with Exposed Pad
Released Date Nov 15, 2024
Last Modified Date Nov 15, 2024 3:50 AM UTC
Pinout / Pin List Click Here (Member Only)

A5932GESSR-1-T Details

Manufacturer Part Number:
A5932GESSR-1-T
Manufacturer:
Allegro MicroSystems LLC

Trust Checks

System Verified

A5932GESSR-1-T Overview

Use the download button to access the A5932GESSR-1-T schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like A5932, or try a keyword search, such as Motion Control Electronics
