SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Screening Level:
AEC-Q100
Seated Height-Max:
1.2 mm
Supply Current-Max (Isup):
15 mA
Supply Voltage-Max (Vsup):
50 V
Supply Voltage-Min (Vsup):
5.5 V
Supply Voltage-Nom (Vsup):
8 V
Surface Mount:
YES
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Width:
4.4 mm
A5932GLPTR-T Frequently Asked Questions (FAQs)
A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the PCB. A minimum of 2 oz copper thickness is recommended. Additionally, keeping the thermal pad away from other components and ensuring good airflow around the device can help improve thermal performance.
To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal design and layout guidelines. This includes providing adequate heat sinking, using thermal interface materials, and ensuring good airflow around the device. Additionally, derating the device's output current and voltage can help reduce thermal stress and ensure reliable operation.
The recommended decoupling capacitors for the A5932GLPTR-T are 10 μF to 22 μF X7R or X5R ceramic capacitors, placed as close to the device as possible. These capacitors help filter out noise and ensure stable operation.
To troubleshoot issues with the device's output voltage regulation, check the input voltage, output voltage, and output current. Verify that the input voltage is within the recommended range and that the output voltage is within the specified tolerance. Also, check for any signs of overheating, such as excessive temperature or thermal shutdown. If the issue persists, consult the datasheet or contact Allegro MicroSystems LLC for further assistance.
The A5932GLPTR-T has built-in ESD protection and latch-up protection mechanisms. The device features a human-body model (HBM) ESD rating of ±2 kV and a machine model (MM) ESD rating of ±200 V. Additionally, the device has a latch-up protection mechanism that prevents damage from excessive current surges.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
A5932GLPTR-T Overview

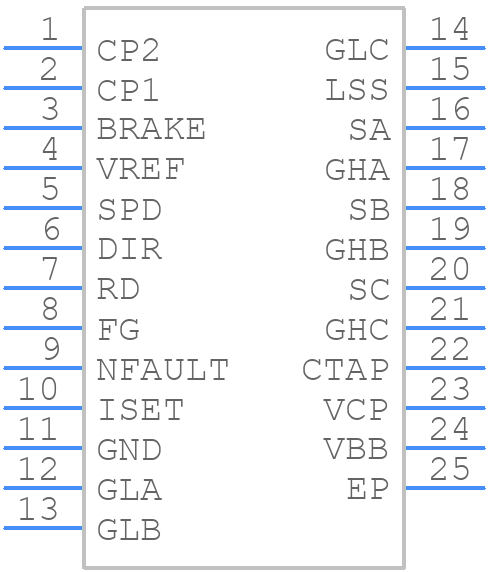

Use the download button to access the A5932GLPTR-T schematic symbol, PCB footprint, and 3D model.
