Allegro recommends a 2-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern on the top layer to minimize thermal resistance. A minimum of 2 oz copper thickness is recommended.
To ensure reliable operation in high-vibration environments, Allegro recommends using a robust PCB design, securing the device with a suitable mechanical fastening method, and using a conformal coating to protect the device from environmental factors.
Allegro recommends a soldering profile with a peak temperature of 260°C (500°F) and a dwell time of 10-30 seconds. The device should be soldered using a no-clean or water-soluble flux.
Yes, the A5936GLKTR-T is AEC-Q100 qualified, making it suitable for automotive applications. However, it's essential to ensure that the device meets the specific requirements of the target application, including temperature, vibration, and electrical performance.
To troubleshoot issues with the device's output current, Allegro recommends checking the input voltage, output voltage, and output current sense resistor values. Ensure that the device is properly configured and that the output current is within the specified limits.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
A5936GLKTR-T Overview

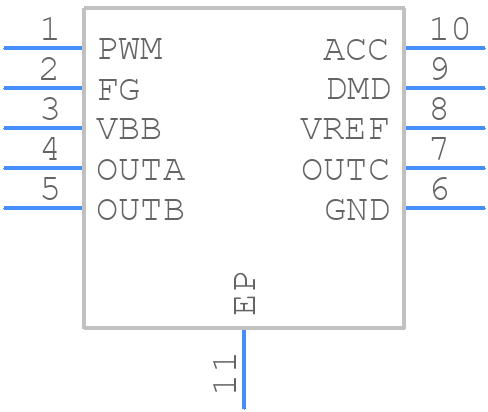

Use the download button to access the A5936GLKTR-T schematic symbol, PCB footprint, and 3D model.
