A5940GEJTR-T - Allegro Microsystems

Description: Three-Phase Sensorless Fan Driver

Download A5940GEJTR-T Model
Schematic
symbols

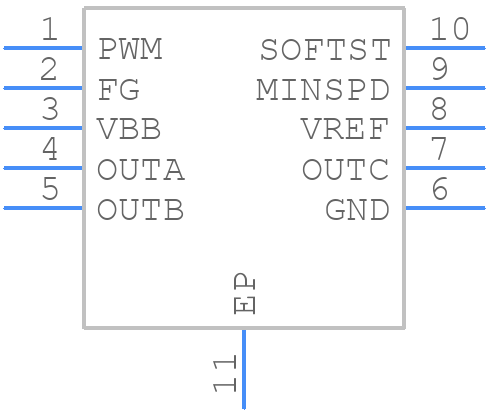

Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
A5940GEJTR-T - Allegro Microsystems PCB footprint - Small Outline No-lead - Small Outline No-lead - EJ,10-Contact DFN
click to zoom
3D Models
A5940GEJTR-T - Allegro Microsystems  - 3D model - Small Outline No-lead - EJ,10-Contact DFN
click to zoom

A5940GEJTR-T Details

  • Manufacturer Part Number:

    A5940GEJTR-T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    7

  • Analog IC - Other Type:

    AC MOTOR CONTROLLER

  • Moisture Sensitivity Level:

    1

A5940GEJTR-T Frequently Asked Questions (FAQs)

  • Allegro provides a recommended PCB layout in their application note AN296040, which includes guidelines for component placement, trace routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The thermal pad on the A5940GEJTR-T should be connected to a thermal plane on the PCB to dissipate heat efficiently. Allegro recommends using a thermal interface material (TIM) and a thermal via array to connect the thermal pad to the thermal plane. The PCB should also be designed to minimize thermal resistance.
  • Although the datasheet specifies a recommended operating voltage range of 5.5 V to 50 V, Allegro recommends not exceeding 45 V on the VCC pin to ensure reliable operation and prevent damage to the device.
  • Allegro provides a troubleshooting guide in their application note AN296041, which includes steps to identify and resolve common issues such as incorrect pin connections, faulty components, and thermal-related problems.
  • Allegro recommends using a 10 μF to 22 μF ceramic capacitor with a voltage rating of 50 V or higher as the VCC bypass capacitor to ensure stable operation and minimize noise.
