The recommended PCB layout for the A5940GLKTR-T involves placing the device near the motor windings, using a solid ground plane, and keeping the high-current paths short and wide. A 4-layer PCB with a dedicated power plane is recommended.
The sense resistor value depends on the motor current and the desired current sense accuracy. A higher sense resistor value provides better accuracy but increases power loss. A good starting point is a 0.01 ohm to 0.1 ohm sense resistor.
The maximum operating temperature of the A5940GLKTR-T is 150°C. However, the device can be operated up to 175°C for short periods of time. It's essential to ensure proper thermal management to prevent overheating.
The A5940GLKTR-T has built-in overvoltage protection, but it's still recommended to add external protection circuitry, such as a TVS diode or a zener diode, to protect against voltage transients and spikes. Undervoltage protection can be achieved using a voltage supervisor or a reset IC.
A decoupling capacitor value of 10uF to 22uF is recommended, depending on the operating frequency and the motor's inductance. The capacitor should be placed as close as possible to the device's power pins.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
A5940GLKTR-T Overview

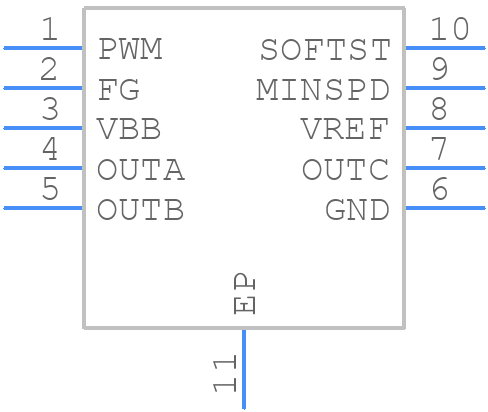

Use the download button to access the A5940GLKTR-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A5940,
or try a keyword search, such as Motion Control Electronics
