SMALL OUTLINE, HEAT SINK/SLUG, LOW PROFILE, SHRINK PITCH
Screening Level:
AEC-Q100
Seated Height-Max:
1.65 mm
Supply Current-Max (Isup):
9 mA
Supply Voltage-Max (Vsup):
18 V
Supply Voltage-Min (Vsup):
4 V
Supply Voltage-Nom (Vsup):
12 V
Surface Mount:
YES
Temperature Grade:
AUTOMOTIVE
Terminal Form:
GULL WING
Terminal Pitch:
1 mm
Terminal Position:
DUAL
Width:
3.9 mm
A5941GLKTR-T Frequently Asked Questions (FAQs)
A good thermal design should be used to ensure the device operates within the recommended temperature range. A minimum of 2 oz copper thickness is recommended, and thermal vias should be used to dissipate heat. The datasheet provides a recommended PCB layout, but it's essential to consult with a thermal expert or Allegro's application notes for specific guidance.
Allegro provides an application note (AN296104) that provides detailed configuration guidelines. Additionally, Allegro's technical support team can provide guidance on configuration and optimization for specific applications. It's essential to carefully review the datasheet and application notes to ensure proper configuration.
The datasheet recommends using 10 μF and 100 nF decoupling capacitors, but the specific values may vary depending on the application. It's essential to consult with Allegro's application notes and technical support team to determine the optimal decoupling capacitor values for your specific design.
Allegro provides a troubleshooting guide (AN296105) that covers common issues and their solutions. Additionally, Allegro's technical support team can provide guidance on troubleshooting and debugging. It's essential to carefully review the datasheet and application notes to identify potential issues and take corrective action.
The A5941GLKTR-T is designed to operate in a variety of environmental conditions, but it's essential to consider factors such as temperature, humidity, and vibration. Allegro provides reliability data and environmental testing information in the datasheet and application notes. It's essential to review this information to ensure the device meets the requirements of your specific application.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
A5941GLKTR-T Overview

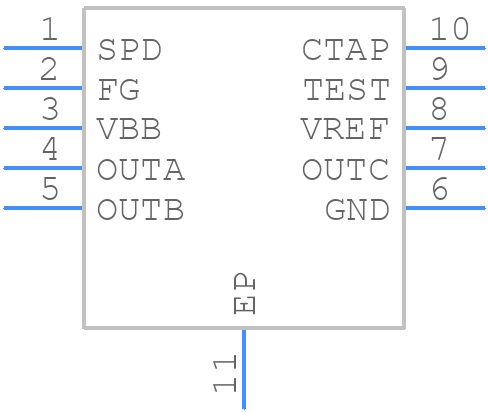

Use the download button to access the A5941GLKTR-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A5941,
or try a keyword search, such as Motion Control Electronics
