Part Image

A5950GEUSR-T - Allegro Microsystems

Description: DC Brush Motor Driver

Download A5950GEUSR-T Model

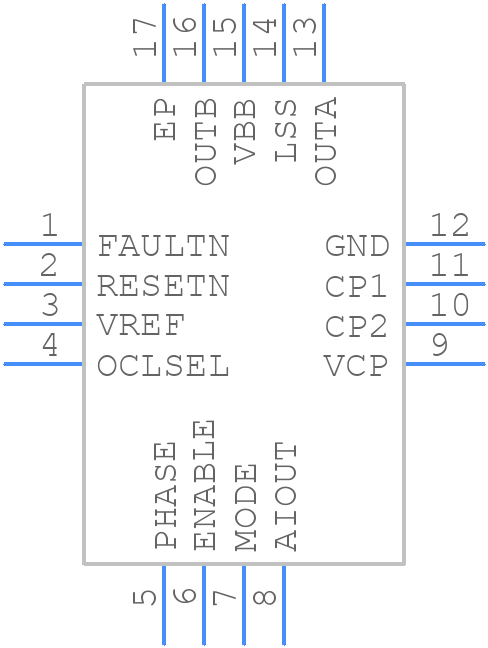

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
A5950GEUSR-T - Allegro Microsystems PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - EU Package, 16-Lead QFN with Exposed Thermal Pad
click to zoom
3D Models
A5950GEUSR-T - Allegro Microsystems  - 3D model - Quad Flat No-Lead - EU Package, 16-Lead QFN with Exposed Thermal Pad
click to zoom

A5950GEUSR-T Details

  • Manufacturer Part Number:

    A5950GEUSR-T

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Allegro MicroSystems LLC

  • YTEOL:

    9

  • Analog IC - Other Type:

    3-PHASE BRUSHLESS DC MOTOR CONTROLLER

  • JESD-30 Code:

    S-XQCC-N16

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3 A

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,4SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.005 mA

  • Supply Voltage-Max (Vsup):

    40 V

  • Supply Voltage-Min (Vsup):

    5.5 V

  • Supply Voltage-Nom (Vsup):

    8 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

A5950GEUSR-T Frequently Asked Questions (FAQs)

  • A good PCB layout for the A5950GEUSR-T involves keeping the device away from high-current carrying traces, using a solid ground plane, and minimizing the length of the traces connected to the device's pins. Allegro provides a recommended PCB layout in their application note AN296068.
  • To ensure proper power and decoupling, connect a 0.1uF ceramic capacitor between the VCC and GND pins, and a 10uF electrolytic capacitor between the VCC and GND pins. Also, ensure that the power supply is stable and can provide the required current.
  • The A5950GEUSR-T can be programmed using the SPI interface. Allegro provides a programming guide and software tools to simplify the programming process. It is recommended to use a dedicated programming adapter and follow the guidelines provided in the programming guide.
  • To troubleshoot issues with the A5950GEUSR-T, start by verifying the power supply and decoupling, then check the device's configuration and programming. Use a logic analyzer or oscilloscope to monitor the device's signals and identify any issues. Allegro also provides a troubleshooting guide in their application note AN296068.
  • The A5950GEUSR-T has a maximum junction temperature of 150°C. Ensure good airflow around the device, and consider using a heat sink if the device is expected to operate in high-temperature environments. Follow the thermal management guidelines provided in the datasheet and application notes.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

A5950GEUSR-T Overview

Use the download button to access the A5950GEUSR-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A5950, or try a keyword search, such as Motion Control Electronics
