SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Seated Height-Max:
1.2 mm
Supply Current-Max (Isup):
0.005 mA
Supply Voltage-Max (Vsup):
40 V
Supply Voltage-Min (Vsup):
5.5 V
Supply Voltage-Nom (Vsup):
8 V
Surface Mount:
YES
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Width:
4.4 mm
A5950KLPTR-T Frequently Asked Questions (FAQs)
A good thermal design should be used to ensure the device operates within the recommended temperature range. A minimum of 2 oz copper thickness is recommended, and thermal vias should be used to dissipate heat. The datasheet provides a recommended PCB layout, but it's essential to consult with a thermal expert or Allegro's application notes for specific guidance.
To ensure EMC, follow proper PCB design and layout guidelines, such as keeping sensitive analog circuits away from noisy digital circuits, using shielding, and implementing proper grounding techniques. Additionally, Allegro provides application notes and design guides that provide specific EMC recommendations for the A5950KLPTR-T.
Allegro recommends following the JEDEC J-STD-020 standard for soldering and rework. The device is sensitive to thermal stress, so it's essential to use a low-temperature soldering process (below 260°C) and avoid excessive thermal cycling. Consult Allegro's application notes for specific guidance on soldering and rework techniques.
To troubleshoot issues, start by reviewing the datasheet and application notes to ensure proper device operation and configuration. Check for proper power supply, decoupling, and signal integrity. Use oscilloscopes and logic analyzers to debug the issue. If the problem persists, contact Allegro's technical support for further assistance.
The A5950KLPTR-T is RoHS and WEEE compliant. Ensure that the device is operated within the recommended temperature range and follow proper storage and handling procedures to prevent damage. Consult Allegro's documentation and regulatory agencies for specific guidance on environmental and regulatory considerations.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
A5950KLPTR-T Overview

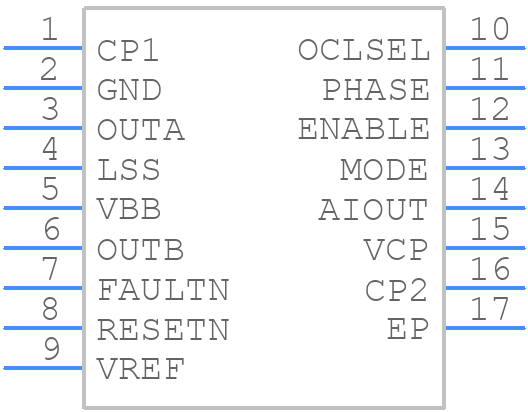

Use the download button to access the A5950KLPTR-T schematic symbol, PCB footprint, and 3D model.
