A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the PCB. A 2-layer or 4-layer PCB with a solid ground plane is recommended. Additionally, keeping the device away from high-current carrying traces and using thermal vias can help reduce thermal resistance.
To ensure accurate current sensing, it's essential to follow proper PCB layout guidelines, such as keeping the sense lines short and away from noise sources, and using a low-impedance path for the sense lines. Additionally, calibrating the device during manufacturing and using a high-precision resistor for the sense resistor can improve accuracy.
To prevent damage, handle the device by the body and not the pins, use an anti-static wrist strap or mat, and avoid touching the pins or exposed die. Also, avoid bending or flexing the leads, and use a soldering iron with a temperature-controlled tip to prevent overheating.
To troubleshoot issues, start by verifying the PCB layout and ensuring that the device is properly soldered. Check the input voltage, sense resistor value, and output voltage to ensure they are within the recommended operating range. Use an oscilloscope to check for noise or oscillations on the output. If the issue persists, consult the datasheet and application notes or contact Allegro MicroSystems LLC support.
Operating the device beyond the recommended operating conditions can lead to reduced accuracy, increased power consumption, and decreased reliability. It may also cause the device to malfunction or fail prematurely. Always ensure that the device operates within the recommended voltage, current, and temperature ranges to ensure optimal performance and reliability.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
A5984GESTR-T Overview

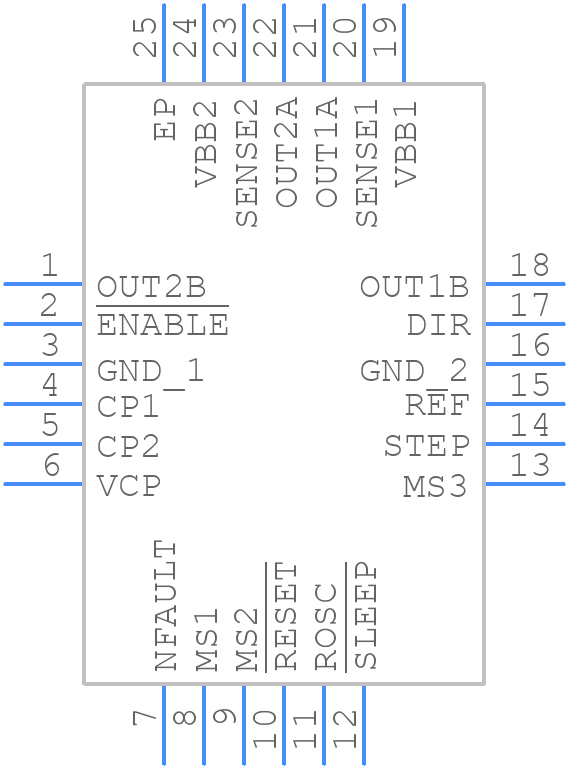

Use the download button to access the A5984GESTR-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A5984,
or try a keyword search, such as Motion Control Electronics
