A5984GETTR-T - Allegro Microsystems

Description: DMOS Microstepping Driver W/Translator And Ocp

Download A5984GETTR-T Model
Schematic
symbols

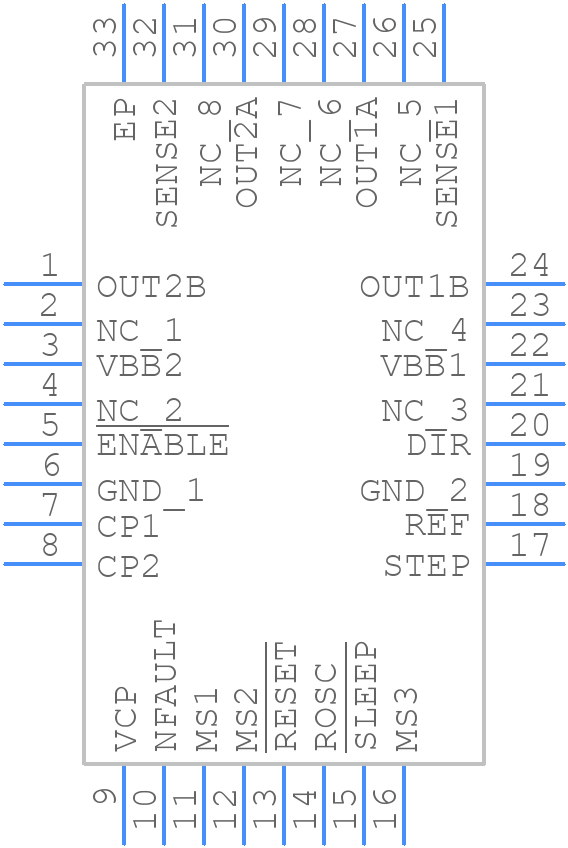

Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
A5984GETTR-T - Allegro Microsystems PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - ET Package, 32-Contact QFN with Exposed Thermal Pad-1
click to zoom
3D Models
A5984GETTR-T - Allegro Microsystems  - 3D model - Quad Flat No-Lead - ET Package, 32-Contact QFN with Exposed Thermal Pad-1
click to zoom

A5984GETTR-T Details

  • Manufacturer Part Number:

    A5984GETTR-T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-32

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2016-05-10

  • Manufacturer:

    Allegro MicroSystems LLC

  • Analog IC - Other Type:

    STEPPER MOTOR CONTROLLER

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2 A

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    40 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

A5984GETTR-T Frequently Asked Questions (FAQs)

  • Allegro provides a recommended PCB layout in the application note AN296065, which includes guidelines for thermal management, noise reduction, and signal integrity.
  • The maximum allowable motor current can be calculated using the formula: IMAX = (VDSS - VOUT) / (RDS(on) * 2), where VDSS is the drain-source voltage, VOUT is the output voltage, and RDS(on) is the on-state resistance.
  • The VREG pin is used to regulate the internal voltage of the device. It should be connected to a 10uF capacitor to ground to ensure stable operation.
  • The A5984GETTR-T has a built-in overcurrent protection feature. The device will automatically shut down if the current exceeds the threshold set by the OCx pins. The OCx pins can be connected to a resistor network to set the desired overcurrent threshold.
  • The recommended operating temperature range for the A5984GETTR-T is -20°C to 85°C. However, the device can operate up to 150°C with derating.
