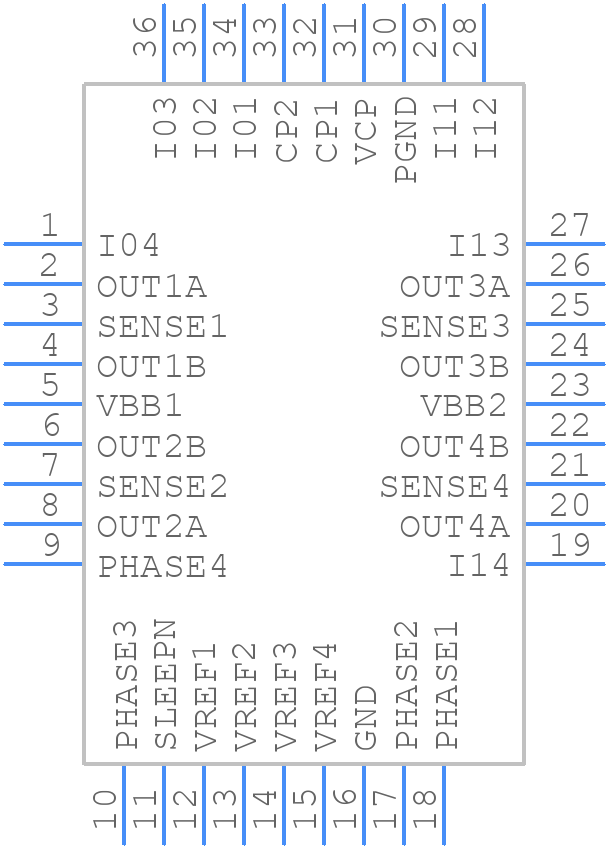

A5988GEVTR-T - Allegro Microsystems

A5988GEVTR-T Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal thermal performance?
  A good thermal design should include a solid copper plane on the PCB, connected to the GND pin, to help dissipate heat. Additionally, keeping the component side of the PCB clear of other components and traces can improve airflow and heat dissipation.
• How do I ensure accurate current sensing with the A5988?
  To ensure accurate current sensing, it's essential to follow proper PCB layout guidelines, such as keeping the sense traces short and away from noise sources, and using a low-impedance path for the sense lines. Additionally, calibrating the device during manufacturing can help improve accuracy.
• What is the recommended input filter configuration for the A5988?
  A simple RC filter with a 1 kΩ resistor and a 10 nF capacitor is a good starting point for most applications. However, the optimal filter configuration may vary depending on the specific application and noise environment.
• How do I handle overcurrent conditions with the A5988?
  The A5988 has a built-in overcurrent detection feature that can be used to trigger an interrupt or shutdown the device. It's essential to implement a suitable overcurrent response mechanism in the system design to prevent damage or ensure safe operation.
• What is the maximum allowed voltage on the VCC pin?
  The maximum allowed voltage on the VCC pin is 5.5 V. Exceeding this voltage can damage the device. It's essential to ensure that the power supply voltage is within the recommended operating range.
