A good thermal design should be used to ensure the device operates within the recommended temperature range. A minimum of 2 oz copper thickness is recommended, and thermal vias should be used to dissipate heat. The datasheet provides a recommended PCB layout, but it's essential to consult with a thermal expert or Allegro's application notes for specific guidance.
Allegro provides an application note (AN296040) that provides detailed information on configuring the A5989GEVTR-T for various applications. Additionally, Allegro's technical support team can provide guidance on configuration and optimization for specific use cases.
The datasheet recommends using 0.1 μF and 10 μF decoupling capacitors, but the specific capacitor values and placement may vary depending on the application. It's essential to consult with Allegro's application notes and technical support team for specific guidance on decoupling capacitor selection and placement.
Allegro provides a troubleshooting guide (AN296041) that outlines common issues and their solutions. Additionally, Allegro's technical support team can provide guidance on troubleshooting and debugging techniques specific to the A5989GEVTR-T.
The A5989GEVTR-T has undergone various environmental and reliability tests, including temperature cycling, humidity testing, and vibration testing. Allegro provides detailed information on the testing and qualification process in their reliability report (RR296040).
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
A5989GEVTR-T Overview

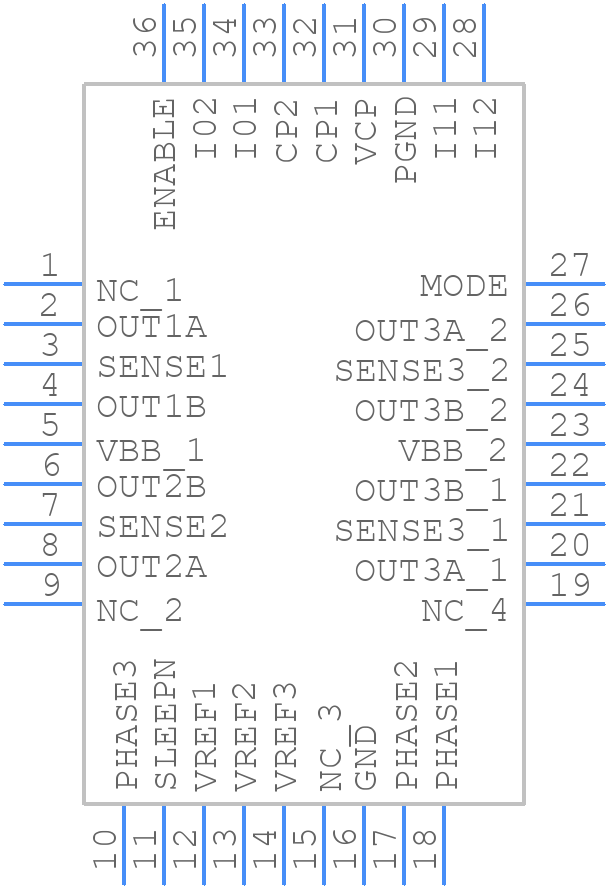

Use the download button to access the A5989GEVTR-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A5989,
or try a keyword search, such as Motion Control Electronics
