A good thermal design should include a solid copper plane on the PCB, connected to the GND pin, to help dissipate heat. Additionally, keeping the component side of the PCB clear of other components and traces can improve airflow and heat dissipation.
To ensure reliable operation in high-vibration environments, it is recommended to use a robust PCB design, secure the device with a sturdy mechanical fastening system, and consider using a conformal coating to protect the device from moisture and contaminants.
Allegro recommends using a 10uF ceramic capacitor with a voltage rating of 16V or higher, placed as close to the device as possible, to decouple the power supply. Additional capacitors may be required depending on the specific application.
First, verify that the device is properly powered and that the motor is properly connected. Check the fault pin (FAULT) to see if it is indicating an error. If the fault pin is high, check the datasheet for the specific fault code. Also, verify that the input signals (IN1 and IN2) are correct and that the device is not in a sleep mode.
The A5995GEVSR-T has an operating temperature range of -40°C to 150°C, but the device's performance and reliability may degrade at extreme temperatures. It is recommended to operate the device within a temperature range of -20°C to 125°C for optimal performance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
A5995GEVSR-T Overview

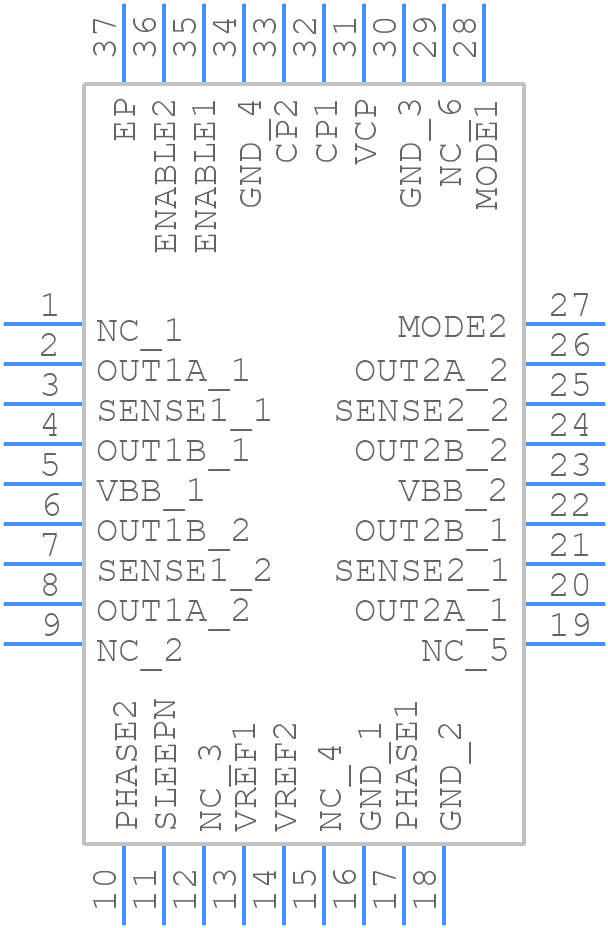

Use the download button to access the A5995GEVSR-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A5995,
or try a keyword search, such as Motion Control Electronics
