Part Image

A765MU158M0JLAE010 - Yageo Group

Description: A765, Aluminum, Polymer Aluminum, 1,500 uF, 20%, 6.3 VDC, -55/+105°C, 105°C, -55°C, 105°C, 2,000 Hrs, 10 mOhms, 1,890 uA, 10mm, 12.6mm, 400

Download A765MU158M0JLAE010 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

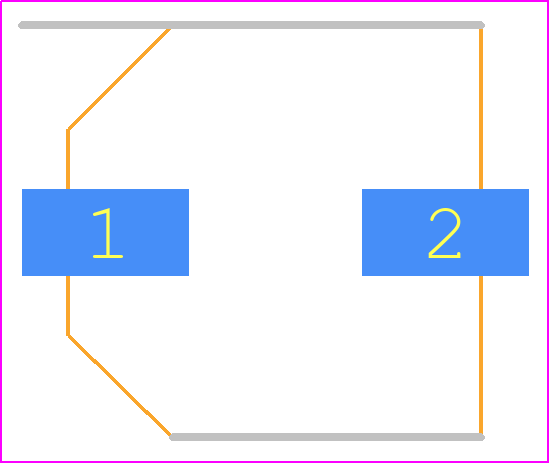

A765MU158M0JLAE010 - Yageo Group PCB footprint - Capacitor Al Electrolytic - Capacitor Al Electrolytic - 10*12.6
click to zoom
3D Models
A765MU158M0JLAE010 - Yageo Group  - 3D model - Capacitor Al Electrolytic - 10*12.6
click to zoom

A765MU158M0JLAE010 Details

  • Manufacturer Part Number:

    A765MU158M0JLAE010

  • Manufacturer:

    YAGEO Corporation

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

A765MU158M0JLAE010 Overview

Use the download button to access the A765MU158M0JLAE010 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like A765M, or try a keyword search, such as Aluminum Electrolytic Capacitors
