The recommended PCB layout for optimal performance can be found in the AAT3670ISK-4.2-T1 evaluation board design files, which are available on the Skyworks Solutions website. The layout should prioritize minimal trace length and impedance matching for the high-frequency signals.
To ensure reliable operation over the full temperature range, it is essential to follow the recommended operating conditions, including voltage and current ratings, and to implement proper thermal management, such as heat sinking and airflow, to keep the device within its specified temperature range.
The AAT3670ISK-4.2-T1 has built-in ESD protection, but it is still important to follow standard ESD handling procedures, such as using an ESD wrist strap or mat, and storing the devices in anti-static packaging. Additionally, the device should be handled in a clean and dry environment to prevent moisture-related damage.
Yes, the AAT3670ISK-4.2-T1 is a general-purpose power switch that can be used in non-USB applications, such as battery charging, power backup, and power distribution systems. However, the device's performance and functionality may vary depending on the specific application requirements.
The typical turn-on and turn-off time for the AAT3670ISK-4.2-T1 is around 10-20 μs, but this can vary depending on the specific application circuitry and operating conditions. It is recommended to consult the datasheet and application notes for more detailed information.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AAT3670ISK-4.2-T1 Overview

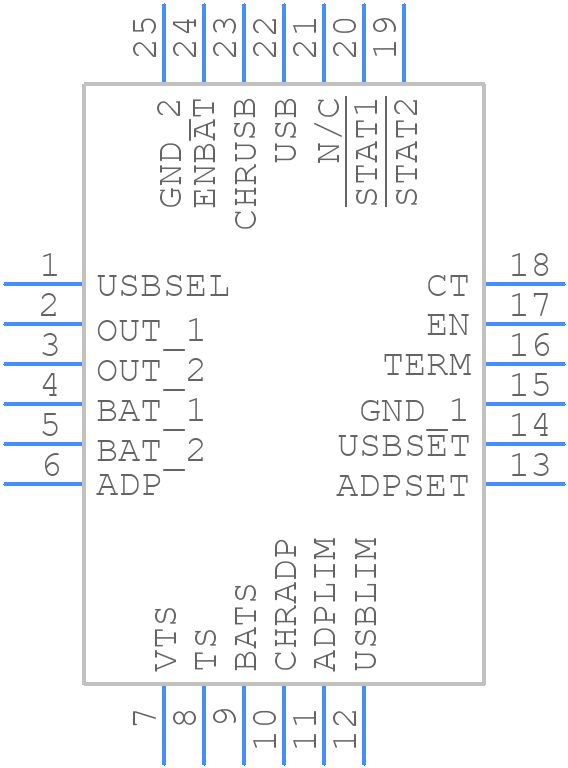

Use the download button to access the AAT3670ISK-4.2-T1 schematic symbol, PCB footprint, and 3D model.
