ACDA04-41SURKWA-F01 - Kingbright

Description: LED Displays & Accessories Double Red 630nm Common Anode

Download ACDA04-41SURKWA-F01 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

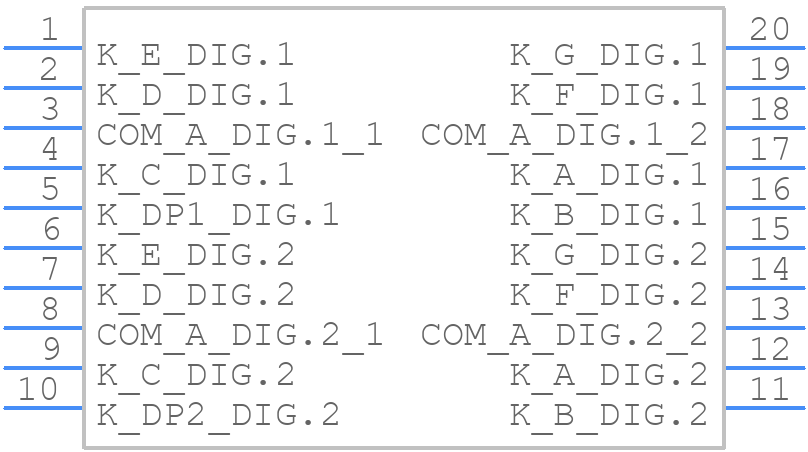

Symbol
ACDA04-41SURKWA-F01 - Kingbright - PCB symbol
click to zoom

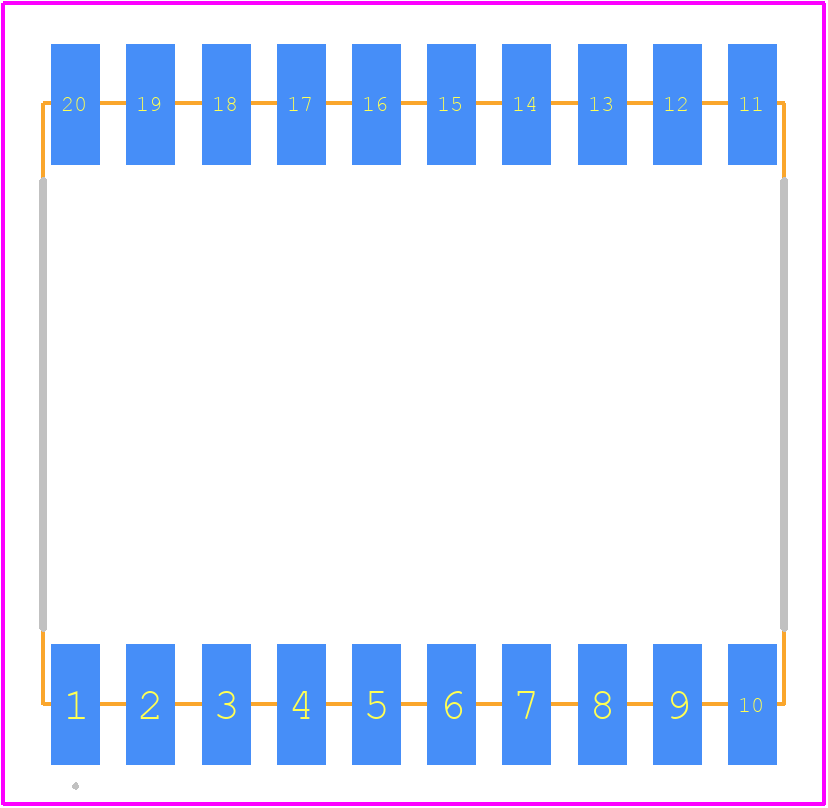

PCB Footprints
ACDA04-41SURKWA-F01 - Kingbright PCB footprint - Other - Other - 20-SMD
click to zoom
3D Models
ACDA04-41SURKWA-F01 - Kingbright - 3D model - Other - 20-SMD
click to zoom

ACDA04-41SURKWA-F01 Details

  • Manufacturer Part Number:

    ACDA04-41SURKWA-F01

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    ROHS COMPLIANT, SURFACE MOUNT PACKAGE-20

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    6

  • Color:

    HYPER RED

  • Color@Wavelength:

    Red

  • Configuration:

    COMMON ANODE, 2 DIGITS WITH DECIMAL POINT

  • Display Height:

    10.16 mm

  • Forward Current-Max:

    0.03 A

  • Number of Functions:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

ACDA04-41SURKWA-F01 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the ACDA04-41SURKWA-F01 is -20°C to 70°C.
  • The ACDA04-41SURKWA-F01 can be interfaced with a microcontroller using a serial interface, such as SPI or I2C. The specific interface protocol will depend on the microcontroller and the application requirements.
  • The typical power consumption of the ACDA04-41SURKWA-F01 is around 20-30mA, depending on the display mode and brightness setting.
  • Yes, the ACDA04-41SURKWA-F01 can be used in outdoor applications, but it may require additional protection against environmental factors such as moisture, UV, and extreme temperatures.
  • The brightness of the ACDA04-41SURKWA-F01 can be adjusted by applying a voltage to the brightness control pin or by using a PWM signal to control the display's brightness.
