ACDA56-41QBWA/D-F01 footprint, schematic symbol and 3D model by Kingbright

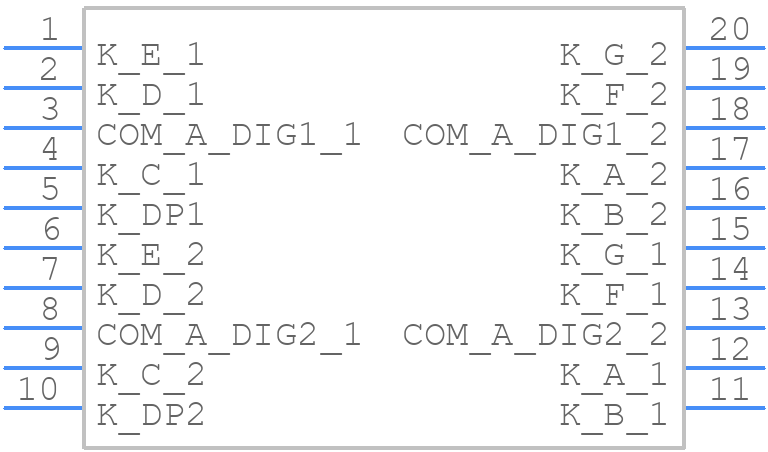

Symbol

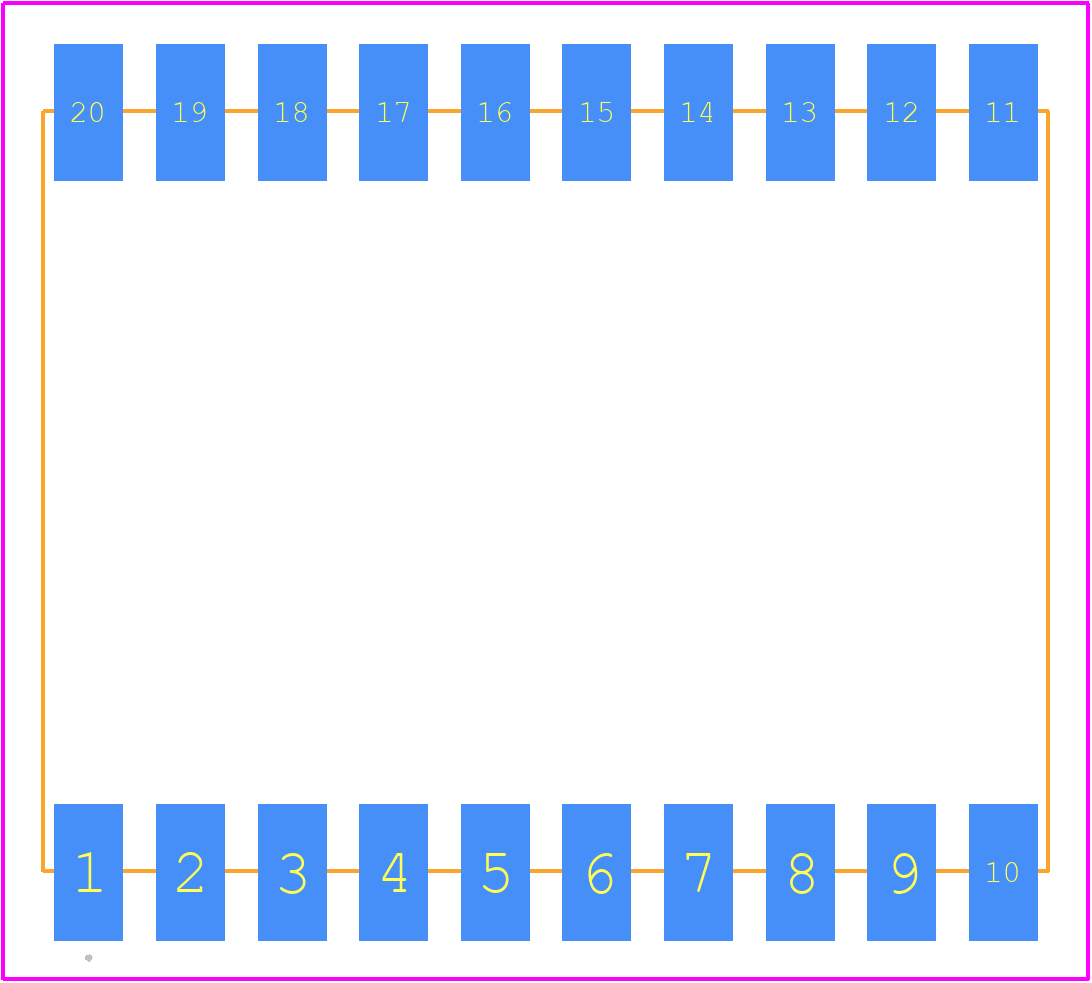

PCB Footprints

3D Models

ACDA56-41QBWA/D-F01 Details

The recommended storage temperature for ACDA56-41QBWA/D-F01 is -20°C to 60°C, with a relative humidity of 60% or less.
While ACDA56-41QBWA/D-F01 is not specifically designed for outdoor use, it can be used in outdoor applications with proper protection from environmental factors such as moisture, UV, and extreme temperatures. A clear resin or conformal coating can be applied to protect the device.
The maximum soldering temperature for ACDA56-41QBWA/D-F01 is 260°C for 3 seconds, with a peak temperature of 240°C. It's essential to follow the recommended soldering profile to avoid damaging the device.
Yes, ACDA56-41QBWA/D-F01 is compatible with lead-free soldering. However, it's crucial to follow the recommended soldering profile and temperature to ensure reliable assembly.
The typical luminous intensity of ACDA56-41QBWA/D-F01 is around 1,500-2,000 mcd, depending on the specific bin and viewing angle.

Community Provided

System Verified

Community Approved

Use the download button to access the ACDA56-41QBWA/D-F01 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like ACDA5, or try a keyword search, such as LED Displays
